MRL Gearless Lift
Jayco MRL (Machine Room-Less) Gearless Lift is a state-of-the-art vertical transportation solution designed to provide smooth, silent, energy-efficient, and reliable passenger movement without the need for a separate machine room. Utilizing advanced Permanent Magnet Synchronous Gearless Motor (PMSM) technology, the MRL Gearless Lift offers superior ride comfort, reduced power consumption, compact installation, and lower maintenance costs.

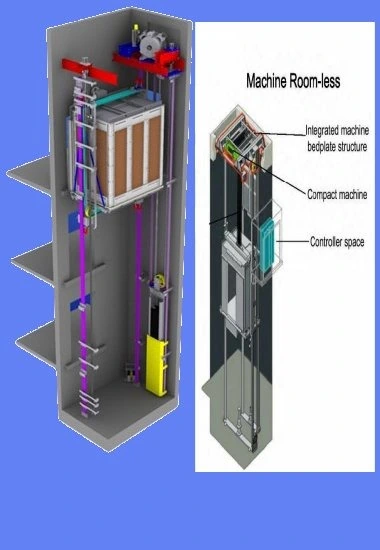

Unlike conventional elevators, the gearless traction machine is installed within the lift shaft, eliminating the requirement for a dedicated machine room. This results in significant space savings, reduced construction costs, and greater architectural flexibility.
Jayco MRL Gearless Lifts are ideal for residential apartments, commercial buildings, hospitals, hotels, educational institutions, shopping malls, office complexes, and industrial facilities. Available in a wide range of capacities, travel heights, and cabin designs, they can be fully customized to meet specific project requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | MRL Gearless Lift |
| Lift Type | Passenger Elevator |
| Operation | Electric Operated |
| Drive Type | Machine Room-Less Gearless Traction |
| Motor Type | Permanent Magnet Synchronous Gearless Motor (PMSM) |
| Capacity | 4 to 26 Persons (320 kg to 2000 kg) |
| Travel Height | Up to 90 Meters |
| Number of Floors | Ground + Multiple Floors |
| Rated Speed | 0.5 to 2.5 m/sec |
| Control System | Microprocessor-Based Collective Selective Control |
| Drive Control | VVVF (Variable Voltage Variable Frequency) |
| Guide Rails | Precision T-Guide Rails |
| Cabin Construction | Mild Steel / Stainless Steel (SS304 / SS316) |
| Cabin Flooring | PVC / Granite / Marble / Vinyl (Optional) |
| Cabin Ceiling | Designer LED Ceiling |
| Cabin Doors | Automatic Centre Opening / Side Opening |
| Landing Doors | Automatic Sliding Doors |
| Door Operator | VVVF Automatic Door Operator |
| Motor Insulation | Class F |
| Protection Class | IP55 |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Machine Room | Not Required |
| Application | Passenger Transportation |
Design & Manufacturing Standards
- IS 14665 – Electric Traction Lifts
Standard Features
Mechanical Features
- Permanent Magnet Gearless Machine
- Machine Room-Less Design
- Compact Shaft Installation
- Precision T-Guide Rails
- High-Strength Suspension Ropes
- Heavy-Duty Lift Cabin
- Counterweight System
- Smooth and Silent Operation
- Low Vibration Performance
- Long Service Life
Electrical Features
- VVVF Drive Technology
- Microprocessor-Based Controller
- Energy-Efficient Gearless Motor
- Automatic Door Operator
- LED Cabin Lighting
- Automatic Fan Control
- Class F Insulated Motor
- IP55 Protected Electrical Components
- Intelligent Diagnostic System
Safety Features
- Electromagnetic Fail-Safe Brake
- Overspeed Governor
- Safety Gear Mechanism
- Automatic Door Interlock
- Emergency Alarm
- Upper & Lower Final Limit Switches
- Automatic Rescue Device (ARD)
- Overload Protection
- Phase Failure & Phase Reversal Protection
- Buffer Springs / Oil Buffers
- Emergency Communication System
- Fireman's Emergency Operation (Optional)
Optional Features
- Touch Screen Car Operating Panel (COP)
- LCD / TFT Display
- Voice Announcement System
- Braille Buttons
- Automatic Rescue Device (ARD)
- RFID / Access Control System
- Face Recognition Access
- CCTV Camera
- Air Conditioner
- Glass Capsule Cabin
- Stainless Steel Designer Cabin
- Mirror Finish Cabin
- Automatic Ventilation System
- Fire-Rated Landing Doors
- Earthquake Sensor
- IoT Remote Monitoring
- Mobile App Monitoring
- Destination Control System
- Customized Cabin Interiors
- Customized Paint & Finish
Standard Scope of Supply
- MRL Gearless Traction Machine
- Lift Cabin
- Guide Rails
- Counterweight Assembly
- Suspension Wire Ropes / Belts
- Microprocessor Control Panel
- Car Operating Panel (COP)
- Landing Operating Panels (LOP)
- Automatic Landing Doors
- Door Operator
- Overspeed Governor
- Safety Gear
- Buffers
- Electrical Wiring
- LED Cabin Lighting
- Operation & Maintenance Manual
- General Arrangement Drawing
- Routine Test Certificate
Applications
Jayco MRL Gearless Lifts are widely used in:
Why Choose Jayco MRL Gearless Lift?
Technical Advantages
- No Machine Room Required
- Permanent Magnet Gearless Technology
- Energy-Efficient Operation
- Smooth Acceleration & Deceleration
- Precision Floor Leveling
- Silent & Vibration-Free Operation
- Reduced Building Construction Cost
- Compact Installation
- Intelligent Microprocessor Control
- Long Operating Life
- Eco-Friendly Design
- Suitable for Continuous Daily Operation
Frequently Asked Questions (FAQs)
An MRL (Machine Room-Less) Gearless Lift is a passenger elevator that uses a permanent magnet gearless traction machine installed inside the lift shaft, eliminating the need for a separate machine room while providing smooth, quiet, and energy-efficient operation.
- No machine room required
- Saves building space
- Lower construction costs
- Energy-efficient operation
- Smooth and quiet ride
- Reduced maintenance
- High reliability
- Eco-friendly design
Jayco MRL Gearless Lifts are available in capacities from 4 Persons (320 kg) to 26 Persons (2000 kg). Higher capacities can be supplied on request.
Yes. We offer customized cabin sizes, passenger capacities, travel heights, speeds, cabin interiors, door configurations, control systems, and finishes to suit individual project requirements.
They are ideal for residential apartments, commercial buildings, offices, hospitals, hotels, shopping malls, educational institutions, IT parks, and industrial office buildings.
Jayco MRL Gearless Lifts are equipped with overspeed governors, safety gear mechanisms, automatic electromagnetic brakes, door interlocks, overload protection, emergency alarms, upper & lower limit switches, Automatic Rescue Device (ARD), phase protection systems, and emergency communication systems to ensure maximum passenger safety.
Yes. Jayco provides complete installation, testing, commissioning, statutory assistance (where applicable), operator guidance, and technical support.
Yes. We provide genuine spare parts, preventive maintenance services, Annual Maintenance Contracts (AMC), and prompt after-sales support to ensure long-term reliability.
Yes. Due to its Machine Room-Less design, the MRL Gearless Lift is an excellent choice for both new construction projects and modernization of existing buildings, subject to shaft suitability.
Jayco MRL Gearless Lifts combine advanced gearless technology, superior energy efficiency, space-saving installation, exceptional ride comfort, modern aesthetics, and dependable after-sales support, making them an ideal solution for contemporary vertical transportation.
