Pillar Mounted Jib Crane
Jayco Jib Crane – Self Supporting - Column / Pillar Mounted is a compact, reliable, and efficient material handling solution designed for lifting and transferring loads within a circular working area around an existing building column or structural pillar. Manufactured using premium-quality Mild Steel (MS) and advanced engineering technology, our Jib Cranes provide smooth operation, precise load positioning, high operational safety, and long service life.
The crane is securely mounted to an existing RCC column or structural steel pillar, eliminating the need for a separate foundation. It is an ideal solution for individual workstations, machine loading, assembly lines, maintenance shops, warehouses, fabrication units, and production facilities where localized lifting is required.
Jayco Jib Crane – Self Supporting Column / Pillar Mounted can be equipped with Electric Wire Rope Hoists, Electric Chain Hoists, or Manual Chain Pulley Blocks and are available in various lifting capacities, arm lengths, and lifting heights. Customized designs are available to suit specific customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Jib Crane – Self Supporting - Column / Pillar Mounted |
| Operation | Manual / Electric Operated |
| Hoist Type | Electric Wire Rope Hoist / Electric Chain Hoist / Manual Chain Pulley Block |
| Construction Material | Heavy-Duty Mild Steel (MS) |
| Safe Working Load (SWL) | 250 kg to 5,000 kg (0.25 Ton to 5 Ton) |
| Jib Arm Length | Up to 6 Meters |
| Height Under Boom | As per Site Requirement |
| Lifting Height | As per Hoist Selection |
| Slewing Rotation | 180° / 270° / 360° (As per Design) |
| Slewing Operation | Manual / Motorized (Optional) |
| Hoisting Speed | As per Hoist Selection |
| Cross Travel | Manual / Geared / Motorized |
| Duty Classification | IS 3177 / FEM Standards |
| Mounting Type | Existing RCC Column / Structural Steel Pillar |
| Power Supply | 415V, 3 Phase, 50 Hz AC (Electric Models) |
| Control System | Pendant Push Button Station / Optional Wireless Radio Remote Control |
| Surface Finish | Epoxy Primer with Industrial PU Paint |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Workstation & Industrial Material Handling |
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture & Erection of Cranes
Standard Features
Structural Features
- Heavy-duty fabricated jib arm
- Rigid mounting brackets
- Precision-engineered pivot assembly
- High-strength boom construction
- Compact and space-saving design
- Smooth slewing operation
- Excellent structural stability
- Designed for continuous industrial duty
Mechanical Features
- Heavy-duty trolley arrangement
- Compatible with Electric Wire Rope Hoists
- Compatible with Electric Chain Hoists
- Compatible with Manual Chain Pulley Blocks
- Smooth trolley travel
- Precision load positioning
- Robust fabricated construction
- Long service life
Electrical Features (Electric Models)
- Energy-efficient motors
- Electromagnetic fail-safe brake
- Class F insulated motors
- Reliable electrical control panel
- Pendant Push Button Station
- Optional Wireless Radio Remote Control
- IP55 protected electrical components
Safety Features
- Heavy-duty mounting arrangement
- Mechanical rotation stopper
- Overload Protection (Optional)
- Upper & Lower Limit Switches
- Emergency Stop Button
- High-strength forged hook with safety latch
- Factory load tested
- High safety factor
Optional Features
- Electric Wire Rope Hoist
- Electric Chain Hoist
- Manual Chain Pulley Block
- Motorized Trolley
- Geared Trolley
- Push Pull Trolley
- Motorized Slewing
- Variable Frequency Drive (VFD)
- Dual Hoisting Speed
- Wireless Radio Remote Control
- Load Limiter
- Digital Load Display
- Weatherproof Design
- Flameproof / Explosion Proof Hoist
- Stainless Steel Fasteners
- Special Paint Shade
- Customized Boom Length
- Customized Lifting Height
Standard Scope of Supply
- Jib Arm Assembly
- Mounting Brackets
- Pivot Assembly
- Trolley (As Selected)
- Hoist (If Ordered)
- Electrical Control Panel (Electric Models)
- Pendant Push Button Station
- Fasteners & Hardware
- Foundation / Mounting Drawing
- Operation & Maintenance Manual
- Routine Test Certificate
- Warranty Certificate
Applications
Jayco Jib Crane – Self Supporting Column / Pillar Mounted are widely used in:
Why Choose Jib Crane – Self Supporting Column / Pillar Mounted?
Technical Advantages
- No separate floor foundation required
- Utilizes existing building columns
- Smooth 180°, 270°, or 360° rotation
- Compact workstation lifting solution
- Excellent load positioning accuracy
- Heavy-duty fabricated boom
- Low maintenance
- Easy installation
- Long service life
- Suitable for continuous industrial operation
Frequently Asked Questions (FAQs)
A Jib Crane – Self Supporting Column / Pillar Mounted is a lifting system mounted directly to an existing RCC column or structural steel pillar, allowing loads to be lifted and rotated within a defined working area without requiring a separate support column.
Jayco Jib Crane – Self Supporting Column / Pillar Mounted are available in capacities ranging from 250 kg (0.25 Ton) to 5 Ton. Higher capacities can be designed on request.
The crane can be equipped with an Electric Wire Rope Hoist, Electric Chain Hoist, or Manual Chain Pulley Block, depending on the application.
Yes. We offer customized lifting capacities, boom lengths, lifting heights, slewing angles, trolley types, control systems, and mounting arrangements to suit specific customer requirements.
They are widely used in manufacturing plants, engineering workshops, fabrication units, warehouses, assembly lines, automobile industries, machine shops, maintenance departments, and material handling applications.
The crane can be supplied with 180°, 270°, or 360° rotation, depending on the site layout and structural design.
Yes. Jayco provides installation, testing, commissioning, operator training, and complete technical support whenever required.
Yes. We provide genuine spare parts, preventive maintenance, inspections, and prompt after-sales service to ensure reliable and uninterrupted crane operation.
The crane can be mounted on RCC columns or structural steel pillars, subject to verification of the column's strength and suitability for the specified load.
Jayco Jib Cranes - Column / Pillar Mounted can be equipped with fail-safe braking systems, overload protection, upper and lower limit switches, emergency stop button, forged hooks with safety latches, mechanical rotation stoppers, and factory-tested components to ensure safe and reliable lifting operations.

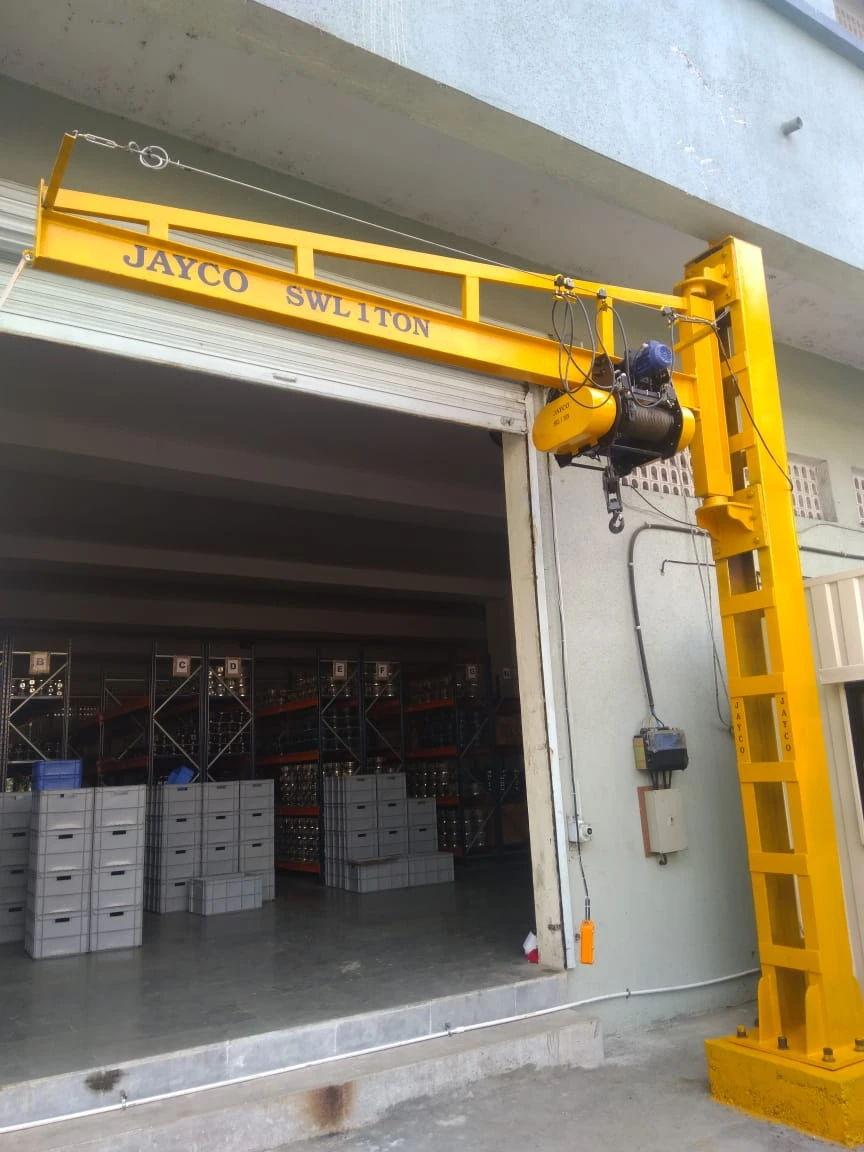

Gallery
