Flameproof Hydraulic Goods Lift
Jayco Flameproof Hydraulic Goods Lift is a heavy-duty, safe, and reliable vertical material handling solution specially designed for hazardous environments where flammable gases, vapours, chemicals, or combustible dust may be present. Powered by a high-performance hydraulic system and equipped with certified flameproof electrical components, this lift ensures safe, smooth, and efficient transportation of goods between multiple floor levels.
Manufactured using premium-quality materials and advanced engineering technology, Jayco Flameproof Hydraulic Goods Lifts are suitable for Zone 1 & Zone 2 Gas Hazardous Areas and Zone 21 & Zone 22 Dust Hazardous Areas, subject to site classification and application requirements.
The lift features a robust fabricated platform, heavy-duty hydraulic cylinders, flameproof electrical controls, and multiple safety devices to ensure reliable operation in demanding industrial environments.
Jayco Flameproof Hydraulic Goods Lifts are available in various lifting capacities, platform sizes, lifting heights, and floor configurations and can be customized to meet specific customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Flameproof Hydraulic Goods Lift |
| Operation | Electro-Hydraulic Operated |
| Drive Type | Hydraulic Cylinder |
| Safe Working Load (SWL) | 500 kg to 5,000 kg (0.5 Ton to 5 Ton) |
| Platform Size | As per Customer Requirement |
| Height of Lift | Up to 20 Meters |
| No. of Floors | Ground + Multiple Floors (G+1, G+2, G+3 & Above) |
| Lifting Speed | 2 to 6 Meters/Minute |
| Hydraulic System | Heavy-Duty Hydraulic Power Pack |
| Guide System | T-Guide Rails / Structural Guide Rails |
| Platform Construction | Heavy-Duty MS Fabricated Platform |
| Platform Floor | Anti-Skid MS Chequered Plate |
| Landing Doors | Swing Type / Sliding Type / Collapsible Doors |
| Hydraulic Motor | Flameproof Electric Motor |
| Motor Insulation | Class F |
| Protection Class | IP65 / IP66 (As Required) |
| Electrical Classification | Suitable for Zone 1, Zone 2, Zone 21 & Zone 22 |
| Gas Group | IIA / IIB / IIC (As Required) |
| Temperature Class | T1 to T6 (As Required) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Control System | Flameproof Push Button Station / Floor Call & Send System |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Hazardous Area Vertical Material Handling |
Design & Manufacturing Standards
- IS 3938 – Electric Wire Rope Hoists (Applicable Components)
- IS 3177 – Lifting Equipment Standards
- IS 807 – Structural Design Standards
- IS/IEC 60079 Series – Equipment for Explosive Atmospheres
- IEC Electrical Standards
Standard Features
Mechanical Features
- Heavy-duty fabricated steel platform
- High-strength hydraulic cylinder
- Precision-engineered hydraulic power pack
- Heavy-duty guide rail system
- Anti-skid chequered platform
- Robust structural frame
- Smooth and stable lifting operation
- Compact and durable construction
- Long service life
Flameproof Electrical Features
- Flameproof hydraulic motor
- Flameproof electrical control panel
- Flameproof push button station
- Flameproof cable glands and junction boxes
- Class F insulated motor
- IP65/IP66 protected electrical components
- Reliable flameproof wiring system
Safety Features
- Hydraulic safety valve
- Hose burst protection valve
- Electromagnetic locking system
- Upper & Lower Limit Switches
- Emergency Stop Button
- Door Safety Interlock
- Overload Protection System (Optional)
- Mechanical Safety Locks
- Emergency Manual Lowering System
- Non-slip platform surface
Optional Features
- Automatic Floor Leveling
- Variable Frequency Drive (VFD)
- Automatic Sliding Doors
- Digital Floor Position Indicator
- Digital Load Display
- Load Limiter
- Battery Backup
- Emergency Rescue Device
- Stainless Steel Platform (SS304 / SS316)
- Flameproof Wireless Remote Control
- Weatherproof Outdoor Design
- Remote Monitoring System
- Customized Platform Size
- Customized Lift Height
- Customized Paint Shade
Standard Scope of Supply
- Hydraulic Goods Lift Platform
- Heavy-Duty Hydraulic Cylinder
- Hydraulic Power Pack
- Flameproof Electric Motor
- Flameproof Electrical Control Panel
- Flameproof Push Button Station
- Guide Rails
- Landing Doors
- Hydraulic Hoses & Fittings
- Limit Switches
- Buffers & Safety Stops
- Operation & Maintenance Manual
- General Arrangement Drawing
- Routine Test Certificate
Applications
Jayco Flameproof Hydraulic Goods Lifts are widely used in:
Why Choose Jayco Flameproof Hydraulic Goods Lift?
Technical Advantages
- Designed for hazardous and explosive environments
- Heavy-duty hydraulic lifting system
- Smooth and vibration-free operation
- Precise floor-level stopping
- High load carrying capacity
- Low maintenance hydraulic system
- Energy-efficient operation
- Quiet performance
- Long operating life
- Suitable for continuous industrial duty
Frequently Asked Questions (FAQs)
A Flameproof Hydraulic Goods Lift is a hydraulic-powered lifting system equipped with certified flameproof electrical components for safely transporting goods in hazardous areas where explosive gases, vapours, or combustible dust may be present.
Jayco Flameproof Hydraulic Goods Lifts are available in capacities ranging from 500 kg (0.5 Ton) to 5 Ton. Higher capacities can be designed and supplied upon request.
Our lifts can be designed for Zone 1 & Zone 2 Gas Hazardous Areas and Zone 21 & Zone 22 Dust Hazardous Areas, depending on the site classification and customer requirements.
Yes. We offer customized platform sizes, lifting capacities, lifting heights, number of floors, door configurations, hazardous area classifications, gas groups, temperature classes, and control systems.
They are widely used in oil & gas plants, refineries, petrochemical industries, chemical plants, pharmaceutical industries, paint manufacturing units, fertilizer plants, LPG terminals, solvent storage facilities, and other hazardous process industries.
The lift can be operated using a Flameproof Push Button Station with optional Floor Call & Send System and other customized control arrangements.
Yes. Jayco provides complete installation, testing, commissioning, operator training, and technical support for hazardous area lifting systems.
Yes. We supply genuine hydraulic and flameproof electrical spare parts along with prompt after-sales service to ensure maximum reliability and uptime.
Yes. Outdoor-duty Flameproof Hydraulic Goods Lifts can be supplied with weatherproof hydraulic power packs, corrosion-resistant paint systems, and IP65/IP66-rated flameproof electrical equipment suitable for harsh environments.
Jayco Flameproof Hydraulic Goods Lifts are equipped with certified flameproof electrical components, hydraulic safety valves, hose burst protection valves, door safety interlocks, overload protection (optional), upper & lower limit switches, emergency stop buttons, emergency manual lowering systems, and robust structural safety features to ensure safe, reliable, and efficient operation in hazardous industrial environments.

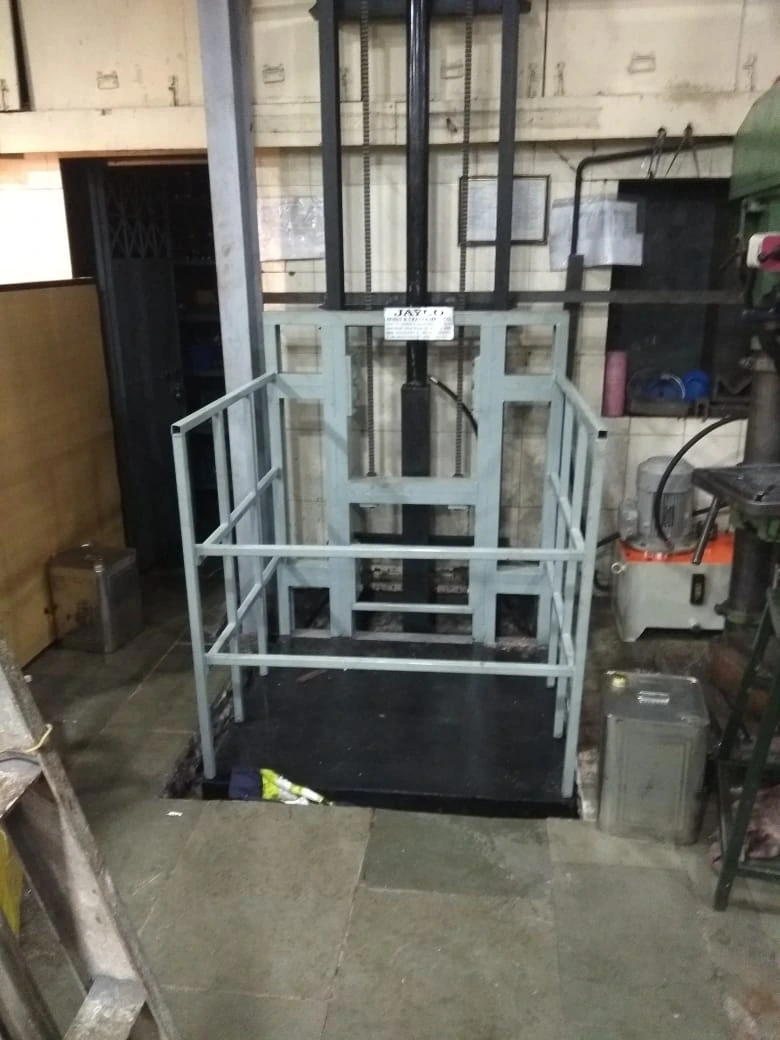

Gallery
