Cage Hoist
Jayco Cage Hoist is a robust, safe, and reliable vertical lifting solution designed for transporting materials between multiple floor levels in industrial, commercial, and construction applications. Engineered using premium-quality components and advanced manufacturing technology, our Cage Hoists provide smooth operation, high lifting efficiency, maximum safety, and long service life.
The hoist consists of a heavy-duty fabricated cage, guided on T-Guide Rails and is powered by an Electric Wire Rope Hoist mounted at the top. The enclosed cage design ensures safe lifting and lowering of materials while preventing accidental load displacement during operation.
Jayco Cage Hoists are suitable for Ground + Multiple Floor (G+1, G+2, G+3, G+4 & Above) applications and can be customized to suit specific lifting capacities, shaft sizes, lifting heights, and customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Cage Hoist |
| Operation | Electric Operated |
| Hoist Type | Electric Wire Rope Hoist |
| Safe Working Load (SWL) | 500 kg to 5,000 kg (0.5 Ton to 5 Ton) |
| Payload Capacity | As per Customer Requirement |
| Height of Lift | Up to 50 Meters |
| No. of Floors | Ground + Multiple Floors (G+1, G+2, G+3, G+4 & Above) |
| Hoisting Speed | 2 to 15 Meters/Minute |
| Drive System | Wire Rope Electric Hoist |
| Guide System | T-Guide Rails / Guide Channels |
| Cage Construction | Heavy-Duty MS Fabricated Cage |
| Cage Floor | Anti-Skid MS Chequered Plate |
| Cage Door | MS Collapsible / Hinged / Sliding Door / Biparting |
| Floor Doors | MS Collapsible / Swing Type / Sliding Door / / Biparting |
| Motor | Squirrel Cage Induction Motor with Brake |
| Motor Insulation | Class F |
| Protection Class | IP55 (Optional IP65) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Control System | Push Button Station / Floor Call & Send System (Optional) |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Vertical Material Handling |
Design & Manufacturing Standards
- IS 3938 – Electric Wire Rope Hoists
- IS 3177 – Electric Overhead Travelling Cranes (Applicable Components)
- IS 807 – Structural Design Standards
- IEC Electrical Standards
Standard Features
Mechanical Features
- Heavy-duty fabricated steel cage
- High-strength guide rail system
- Precision wire rope drum
- Heavy-duty rope guide arrangement
- Anti-skid chequered plate platform
- Heavy-duty structural frame
- Robust support structure
- Smooth lifting mechanism
- Compact and durable construction
- Long service life
Electrical Features
- Energy-efficient squirrel cage induction motor
- Electromagnetic fail-safe brake
- Class F insulated motor
- IP55 protected electrical components
- Reliable electrical control panel
- Pendant Push Button Station
- Floor call station (Optional)
- Smooth and reliable operation
Safety Features
- Full enclosed cage construction
- Electromagnetic fail-safe brake
- Upper & Lower Limit Switches
- Emergency Stop Button
- Overload Protection (Optional)
- Door Safety Interlock (Optional)
- Wire Rope Safety Factor as per Standards
- Mechanical End Stops
- Safety Landing Arrangement
- Hook Safety Latch
Optional Features
- Automatic Floor Leveling
- Floor Call & Send System
- Digital Floor Position Indicator
- Variable Frequency Drive (VFD)
- Dual Speed Operation
- Automatic Landing Door Interlocks
- Overload Protection System
- Emergency Rescue System
- Battery Backup
- Stainless Steel Cage
- Flameproof / Explosion Proof Design
- Weatherproof Outdoor Design
- Remote Monitoring System
- Customized Cage Size
- Customized Lift Height
- Customized Paint Shade
Standard Scope of Supply
- Heavy-Duty Cage Assembly
- Electric Wire Rope Hoist
- Guide Rails.
- Support Structure
- Wire Rope
- Electrical Control Panel
- Pendant Push Button Station
- Floor Doors
- Cage Door
- Upper & Lower Limit Switches
- Buffers & End Stops
- Operation & Maintenance Manual
- General Arrangement Drawing
- Routine Test Certificate
Applications
Jayco Cage Hoists are widely used in:
Why Choose Jayco Cage Hoist?
Technical Advantages
- Safe enclosed material lifting
- Heavy-duty guide rail system
- Smooth and stable vertical travel
- Precision floor stopping
- Compact installation
- Efficient electromagnetic braking system
- Low power consumption
- Quiet and vibration-free operation
- Long operating life
- Designed for continuous industrial duty
Frequently Asked Questions (FAQs)
A Cage Hoist is an electrically operated vertical lifting system designed to safely transport materials between different floor levels using an enclosed steel cage guided on fixed rails.
Jayco Cage Hoists are available in capacities ranging from 500 kg (0.5 Ton) to 5 Ton. Higher capacities can be designed and manufactured on request.
Yes. We offer customized lifting capacities, cage sizes, lifting heights, number of floors, door arrangements, guide rail systems, and control options to suit specific customer requirements.
Our Cage Hoists are widely used in construction sites, warehouses, manufacturing plants, engineering workshops, pharmaceutical industries, food processing plants, commercial buildings, and industrial facilities for vertical material handling.
The hoist can be operated using a Pendant Push Button Station, Floor Call & Send System, or optional automatic floor control system, depending on the application.
- Safe enclosed cage design
- Smooth and reliable lifting
- High operational safety
- Heavy-duty construction
- Low maintenance
- Energy-efficient operation
- Long service life
- Customized solutions
Yes. Jayco provides installation, testing, commissioning, operator training, and complete technical support.
Yes. We supply genuine spare parts and provide prompt after-sales service to ensure reliable, safe, and uninterrupted operation.
Yes. Outdoor-duty Cage Hoists can be supplied with weatherproof electrical equipment, corrosion-resistant paint systems, and customized structural arrangements.
Jayco Cage Hoists can be equipped with electromagnetic fail-safe brakes, upper and lower limit switches, overload protection, emergency stop buttons, door safety interlocks, floor landing safety arrangements, guide rails, and enclosed cage construction to ensure safe, stable, and reliable vertical material handling.

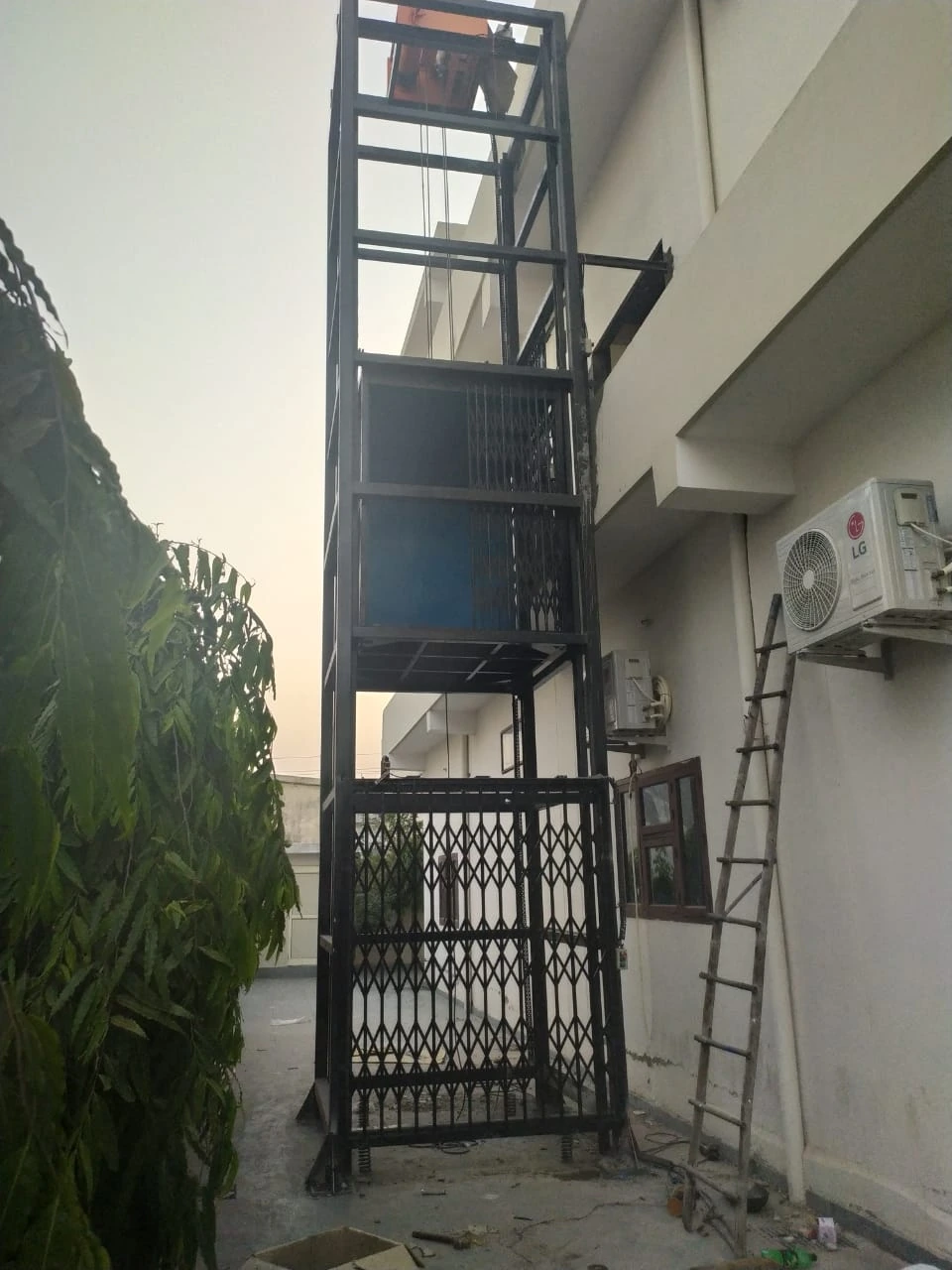

Gallery
