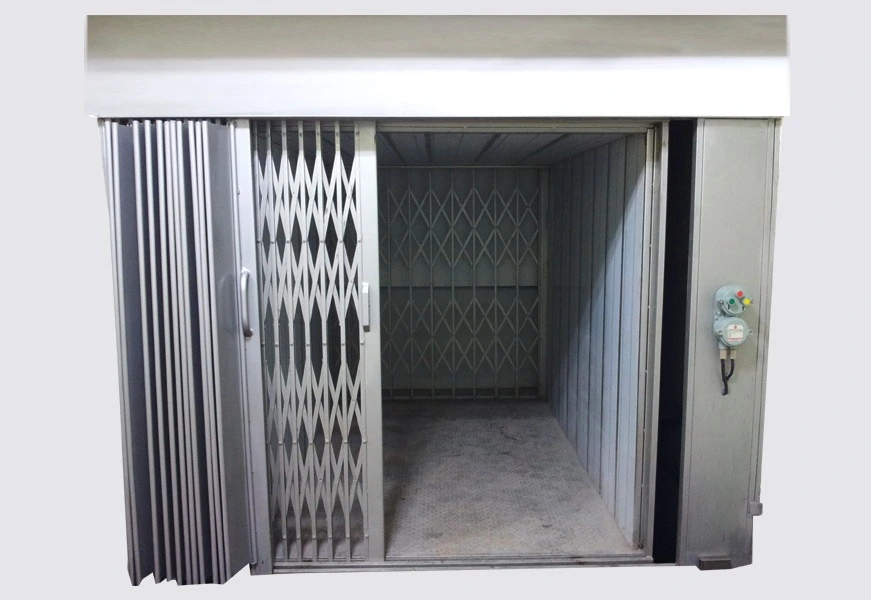

Flameproof Goods Lift
Jayco Flameproof Goods Lift is a heavy-duty, safe, and reliable vertical material handling solution specially designed for hazardous environments where flammable gases, vapours, combustible dust, or explosive atmospheres may be present. Engineered with certified flameproof electrical components and robust structural construction, the lift ensures safe, smooth, and efficient transportation of materials between multiple floor levels.
The lift is powered by a Flameproof Wire Rope Electric Hoist or Flameproof Geared Traction Drive (depending on the application) and is equipped with a heavy-duty fabricated platform, guide rails, and flameproof control system to provide maximum operational safety in hazardous industrial environments.
Jayco Flameproof Goods Lifts are suitable for Zone 1 & Zone 2 Gas Hazardous Areas and Zone 21 & Zone 22 Dust Hazardous Areas, subject to site classification and customer requirements. They are available in a wide range of capacities, platform sizes, lifting heights, and floor configurations and can be customized for specific industrial applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Flameproof Goods Lift |
| Operation | Electric Operated |
| Drive Type | Flameproof Wire Rope Electric Hoist / Flameproof Geared Drive |
| Safe Working Load (SWL) | 500 kg to 5,000 kg (0.5 Ton to 5 Ton) |
| Platform Size | As per Customer Requirement |
| Height of Lift | Up to 75 Meters |
| No. of Floors | Ground + Multiple Floors (G+1, G+2, G+3 & Above) |
| Lifting Speed | 2 to 8 Meters/Minute |
| Guide System | T-Guide Rails / Structural Guide Rails |
| Platform Construction | Heavy-Duty MS Fabricated Platform |
| Platform Floor | Anti-Skid MS Chequered Plate |
| Landing Doors | Swing Type / Sliding Type / Collapsible Doors |
| Motor | Flameproof Squirrel Cage Induction Motor |
| Brake System | Electromagnetic Fail-Safe Brake |
| Motor Insulation | Class F |
| Protection Class | IP65 / IP66 (As Required) |
| Hazardous Area Classification | Zone 1, Zone 2, Zone 21 & Zone 22 |
| Gas Group | IIA / IIB / IIC (As Required) |
| Temperature Class | T1 to T6 (As Required) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Control System | Flameproof Push Button Station / Floor Call & Send System |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Hazardous Area Vertical Material Handling |
Design & Manufacturing Standards
- IS 3938 – Electric Wire Rope Hoists
- IS 3177 – Electric Overhead Travelling Cranes (Applicable Components)
- IS 807 – Design, Manufacture & Erection of Cranes
- IS/IEC 60079 Series – Equipment for Explosive Atmospheres
Standard Features
Mechanical Features
- Heavy-duty fabricated steel platform
- Robust guide rail system
- Precision-engineered lifting mechanism
- Heavy-duty support structure
- Anti-skid chequered platform floor
- Smooth and stable vertical movement
- Compact and durable construction
- Long service life
Flameproof Electrical Features
- Flameproof electric motor
- Flameproof electrical control panel
- Flameproof push button station
- Flameproof cable glands and junction boxes
- Flameproof limit switches
- Class F insulated motor
- IP65/IP66 protected electrical equipment
- Reliable flameproof wiring system
Safety Features
- Electromagnetic fail-safe brake
- Upper & Lower Limit Switches
- Emergency Stop Button
- Door Safety Interlock
- Overload Protection System (Optional)
- Phase Failure & Phase Reversal Protection
- Thermal Overload Protection
- Mechanical Safety Stops
- Non-slip platform surface
- Safety locking arrangement
Optional Features
- Variable Frequency Drive (VFD)
- Automatic Floor Leveling
- Automatic Sliding Doors
- Digital Floor Position Indicator
- Digital Load Display
- Load Limiter
- Battery Backup
- Emergency Rescue System
- Stainless Steel Platform (SS304 / SS316)
- Flameproof Wireless Remote Control
- Weatherproof Outdoor Design
- Marine Duty Paint System
- Remote Monitoring System
- Customized Platform Size
- Customized Lift Height
- Customized Paint Shade
Standard Scope of Supply
- Goods Lift Platform
- Flameproof Wire Rope Electric Hoist / Geared Drive Unit
- Guide Rails
- Support Structure
- Flameproof Electric Motor
- Flameproof Electrical Control Panel
- Flameproof Push Button Station
- Landing Doors
- Wire Rope & Accessories
- Upper & Lower Limit Switches
- Buffers & Safety Stops
- Operation & Maintenance Manual
- General Arrangement Drawing
- Routine Test Certificate
Applications
Jayco Flameproof Goods Lifts are widely used in:
Why Choose Jayco Flameproof Goods Lift?
Technical Advantages
- Designed for explosive gas and dust atmospheres
- Heavy-duty vertical lifting system
- Smooth and stable platform movement
- Precision floor-level stopping
- High load carrying capacity
- Efficient electromagnetic braking system
- Low power consumption
- Quiet and vibration-free operation
- Long operating life
- Suitable for continuous industrial duty
Frequently Asked Questions (FAQs)
A Flameproof Goods Lift is a specially designed material lift equipped with certified flameproof electrical components for safely transporting goods in hazardous areas where explosive gases, vapours, or combustible dust may be present.
Jayco Flameproof Goods Lifts are available in capacities ranging from 500 kg (0.5 Ton) to 5 Ton. Higher capacities can be supplied on request.
Our lifts can be designed for Zone 1 & Zone 2 Gas Hazardous Areas and Zone 21 & Zone 22 Dust Hazardous Areas, depending on the site classification and customer requirements.
Yes. We offer customized platform sizes, lifting capacities, lifting heights, number of floors, door configurations, hazardous area classifications, gas groups, temperature classes, and control systems.
They are widely used in oil & gas plants, petrochemical industries, refineries, chemical plants, pharmaceutical industries, fertilizer plants, paint manufacturing units, LPG terminals, solvent storage facilities, and other hazardous process industries.
The lift can be operated using a Flameproof Push Button Station with an optional Floor Call & Send System and customized control arrangements.
Yes. Jayco provides complete installation, testing, commissioning, operator training, and technical support for hazardous area lifting systems.
Yes. We supply genuine flameproof spare parts and provide prompt after-sales service to ensure reliable and uninterrupted operation.
Yes. Outdoor-duty Flameproof Goods Lifts can be supplied with weatherproof structures, corrosion-resistant paint systems, and IP65/IP66-rated flameproof electrical equipment suitable for harsh industrial environments.
Jayco Flameproof Goods Lifts are equipped with certified flameproof motors, flameproof control panels, electromagnetic fail-safe brakes, overload protection (optional), upper & lower limit switches, emergency stop buttons, door safety interlocks, thermal overload protection, phase protection devices, and heavy-duty structural safety features to ensure safe, reliable, and efficient material handling in hazardous environments.
