Goods Lift
Jayco Goods Lift is a heavy-duty, safe, and efficient vertical material handling solution designed for transporting goods between different floor levels in industrial, commercial, and warehouse applications. Engineered using premium-quality components and advanced manufacturing technology, our Goods Lifts ensure smooth operation, high lifting efficiency, reliable performance, and maximum safety.
The lift is powered by an Electric Wire Rope Hoist and is guided on heavy-duty guide rails for smooth and stable operation. The robust steel platform with protective enclosures ensures safe transportation of materials while minimizing manual handling.
Jayco Goods Lifts are available in a wide range of lifting capacities, platform sizes, lifting heights, and floor configurations. Each lift is custom-designed to meet specific site requirements and operational needs.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Goods Lift |
| Operation | Electric Operated |
| Drive Type | Wire Rope Electric Hoist |
| Safe Working Load (SWL) | 500 kg to 5,000 kg (0.5 Ton to 5 Ton) |
| Platform Size | As per Customer Requirement |
| Height of Lift | Up to 50 Meters |
| No. of Floors | Ground + Multiple Floors (G+1, G+2, G+3 & Above) |
| Lifting Speed | 2 to 15 Meters/Minute |
| Guide System | T-Guide Rails / Structural Guide Rails |
| Cage Construction | Heavy-Duty MS Fabricated Cage |
| Cage Floor | Anti-Skid MS Chequered Plate |
| Landing Doors | MS Collapsible / Swing Type / Sliding Door / Biparting |
| Motor | Squirrel Cage Induction Motor with Electromagnetic Brake |
| Motor Insulation | Class F |
| Protection Class | IP55 (Optional IP65) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Control System | Push Button Station / Floor Call & Send System |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Vertical Material Handling |
Design & Manufacturing Standards
- IS 3938 – Electric Wire Rope Hoists
- IS 3177 – Electric Overhead Travelling Cranes (Applicable Components)
- IS 807 – Structural Design Standards
- IEC Electrical Standards
Standard Features
Mechanical Features
- Heavy-duty fabricated platform
- Robust guide rail system
- Precision-engineered lifting mechanism
- Heavy-duty steel support structure
- Anti-skid chequered platform floor
- Smooth vertical movement
- Compact and durable construction
- Long service life
Electrical Features
- Energy-efficient squirrel cage induction motor
- Electromagnetic fail-safe brake
- Class F insulated motor
- IP55 protected electrical components
- Heavy-duty electrical control panel
- Push Button Control Station
- Floor Call & Send Controls (Optional)
Safety Features
- Electromagnetic fail-safe brake
- Upper & Lower Limit Switches
- Emergency Stop Button
- Overload Protection System (Optional)
- Door Safety Interlock
- Mechanical Safety Stops
- Guide Rail Safety System
- Emergency Manual Lowering (Optional)
- Safety Locking Arrangement
Optional Features
- Hydraulic Drive System
- Automatic Floor Leveling
- Floor Position Indicator
- Variable Frequency Drive (VFD)
- Automatic Sliding Doors
- Collapsible Landing Doors
- Digital Display Panel
- Overload Protection System
- Battery Backup
- Emergency Rescue Device
- Stainless Steel Platform
- Flameproof / Explosion Proof Design
- Outdoor Weatherproof Design
- Remote Monitoring System
- Customized Platform Size
- Customized Lift Height
- Customized Paint Shade
Standard Scope of Supply
- Goods Lift Platform
- Electric Wire Rope Hoist / Hydraulic Drive Unit
- Guide Rails
- Support Structure
- Wire Rope / Hydraulic Components
- Electrical Control Panel
- Push Button Station
- Landing Doors
- Limit Switches
- Buffers & End Stops
- Operation & Maintenance Manual
- General Arrangement Drawing
- Routine Test Certificate
Applications
Jayco Goods Lifts are widely used in:
Why Choose Jayco Goods Lift?
Technical Advantages
- Heavy-duty fabricated platform
- Smooth and stable vertical travel
- Precision floor stopping
- High load carrying capacity
- Low power consumption
- Compact installation
- Efficient braking system
- Quiet and vibration-free operation
- Long operating life
- Designed for continuous industrial operation
Frequently Asked Questions (FAQs)
A Goods Lift is a vertical lifting system designed to transport goods, materials, pallets, machinery, and other heavy loads safely between different floor levels in industrial and commercial buildings.
Jayco Goods Lifts are available in capacities ranging from 500 kg (0.5 Ton) to 5 Ton. Higher capacities can be designed and manufactured on request.
Yes. We offer customized platform sizes, lifting capacities, lifting heights, number of floors, door configurations, control systems, and structural arrangements to meet your specific requirements.
Our Goods Lifts are widely used in manufacturing plants, warehouses, logistics centers, pharmaceutical industries, food processing units, textile industries, shopping malls, commercial buildings, and other facilities requiring vertical material handling.
Jayco Goods Lifts can be supplied with either an Electric Wire Rope Hoist Drive or a Hydraulic Drive System, depending on the application, lifting capacity, and customer preference.
The lift can be operated using a Push Button Control Station, Floor Call & Send System, or an optional automatic control system for enhanced convenience and efficiency.
Yes. Jayco provides complete installation, testing, commissioning, operator training, and technical support to ensure safe and reliable operation.
Yes. We supply genuine spare parts and provide prompt after-sales service to ensure maximum uptime and long-term reliability.
Yes. Outdoor-duty Goods Lifts are available with weatherproof electrical components, corrosion-resistant paint systems, and customized structural designs for reliable outdoor operation.
Jayco Goods Lifts can be equipped with electromagnetic fail-safe brakes, upper and lower limit switches, overload protection, door safety interlocks, emergency stop buttons, guide rail safety systems, emergency lowering arrangements, and robust structural components to ensure safe, reliable, and efficient vertical material handling.

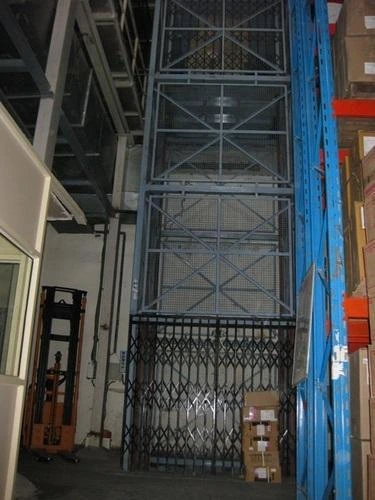

Gallery
