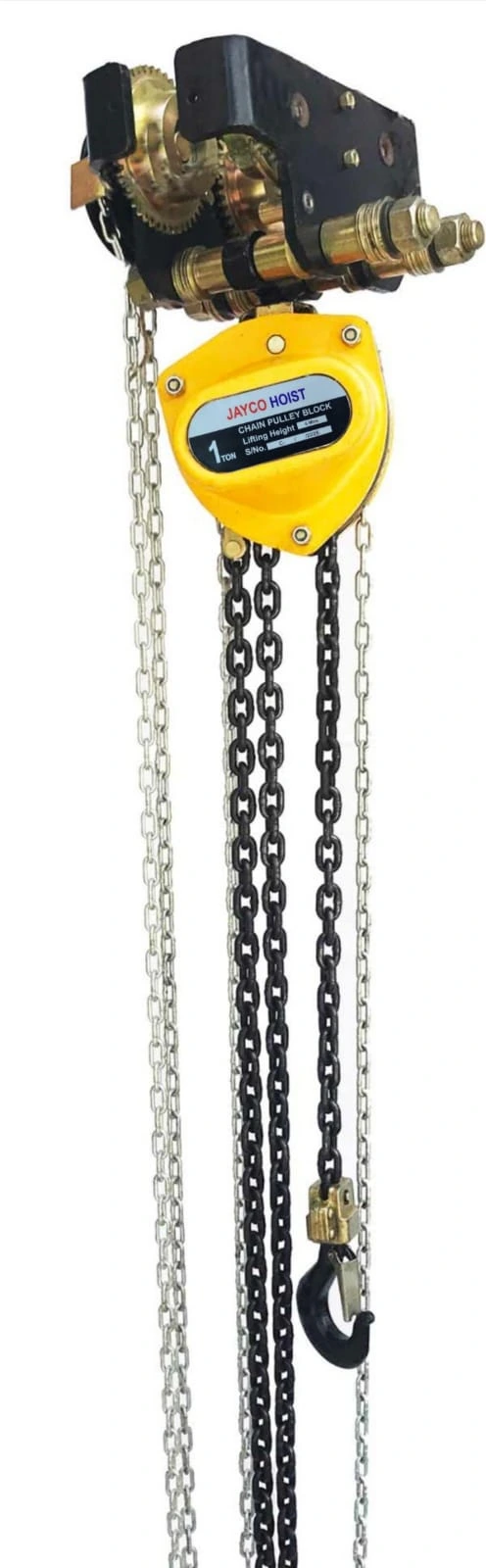

Chain Pulley Block
Jayco Chain Pulley Block – Hook Suspension Type is a heavy-duty, manually operated lifting device designed for safe, efficient, and reliable lifting, lowering, and positioning of heavy loads in industrial, commercial, and maintenance applications. Manufactured using premium-quality materials, precision-machined components, and advanced manufacturing processes, our chain pulley blocks ensure smooth operation, high mechanical efficiency, excellent durability, and long service life.
Jayco Chain Pulley Blocks are available in Mild Steel (MS) and Stainless Steel 304 (SS304) construction to suit different industrial environments.
The Mild Steel (MS) model is suitable for general engineering industries, fabrication shops, warehouses, workshops, power plants, construction sites, and material handling applications.
The Stainless Steel 304 (SS304) model is specially designed for hygienic and corrosive environments such as food processing, pharmaceutical, dairy, beverage, chemical, marine, and clean-room industries where rust resistance and cleanliness are essential.
The Hook Suspension design allows quick installation by simply hanging the block from an overhead beam, eye bolt, lifting hook, monorail beam, jib crane, gantry crane, or EOT crane without requiring permanent mounting.
Jayco Chain Pulley Blocks are manufactured in accordance with IS 3832 and are factory tested to ensure maximum safety, reliability, and performance.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Chain Pulley Block – Hook Suspension Type |
| Operation | Manual Hand Chain Operated |
| Construction Material | Mild Steel (MS) / Stainless Steel 304 (SS304) |
| Mounting Type | Hook Suspension |
| Safe Working Load (SWL) | 500 kg to 10,000 kg (0.5 Ton to 10 Ton) |
| Standard Lift | 3, 6, 9 & 12 Meters |
| Maximum Lift | Up to 30 Meters (Custom Available) |
| Load Chain | Grade 80 / Grade 100 Alloy Steel Heat Treated |
| Hand Chain | Zinc Plated Steel / Stainless Steel |
| Hooks | Forged Alloy Steel with Safety Latch |
| Hook Rotation | 360° Swivel Lower Hook |
| Load Sheave | Precision Machined Alloy Steel |
| Gear Material | Heat Treated Alloy Steel |
| Bearings | Heavy Duty Ball / Roller Bearings |
| Brake System | Automatic Mechanical Load Holding Brake |
| Safety Factor | As per IS Standards |
| Surface Finish | Powder Coated (MS) / Natural SS Finish (SS304) |
| Standard Colours | Orange, Yellow, Grey, Black (MS) / Natural Stainless Steel (SS304) |
| Application | Manual Material Handling |
Design & Manufacturing Standards
- IS 3832 – Chain Pulley Blocks
- IS 6216 – Alloy Steel Load Chains
Available Material Options
Mild Steel (MS)
Recommended for
- Engineering Industries
- Fabrication Workshops
- Warehouses
- Automobile Industries
- Steel Plants
- Cement Plants
- Construction Sites
- Power Plants
- Machine Shops
Advantages
- Economical
- Heavy Duty Construction
- High Mechanical Strength
- Powder Coated Finish
- Easy Maintenance
- Long Service Life
Stainless Steel 304 (SS304)
Recommended for
- Pharmaceutical Industries
- Food Processing Plants
- Dairy Industries
- Beverage Industries
- Chemical Plants
- Marine Industries
- Offshore Applications
- Clean Rooms
- Hygienic Manufacturing Units
Advantages
- Excellent Corrosion Resistance
- Rust Proof Construction
- Hygienic Design
- Wash Down Suitable
- Long Service Life
- Attractive Stainless Steel Finish
Mechanical Features
- Heavy-duty pressed steel body
- Compact and lightweight construction
- Precision-machined gear train
- High mechanical efficiency
- Heat-treated load sheave
- Smooth chain movement
- Durable gearbox
- Heavy-duty side plates
- Precision guide rollers
- Easy manual operation
- Long operating life
Load Chain Features
- Grade 80 / Grade 100 alloy steel chain
- Heat treated for maximum strength
- High wear resistance
- High fatigue strength
- Precision calibrated links
- Smooth chain movement
- Corrosion resistant finish
- Long service life
Hook Features
- Forged alloy steel upper hook
- Forged alloy steel lower hook
- 360° rotating lower hook
- Heavy-duty safety latch
- Heat-treated construction
- High tensile strength
- Precision machined hook seat
Brake Features
- Double Pawl Mechanical Brake
- Automatic Load Holding Brake
- Positive Load Control
- Reliable Braking Performance
- Low Operating Effort
- Long Brake Life
Safety Features
- Automatic Mechanical Brake
- Double Pawl Brake Mechanism
- Forged Safety Hooks
- Heavy Duty Safety Latches
- Heat Treated Load Chain
- Precision Chain Guide
- High Safety Factor
- Factory Load Tested
- Reliable Load Holding
- Safe Manual Operation
Optional Features
- Stainless Steel Hand Chain
- Stainless Steel Hooks
- SS316 Construction
- Spark Resistant Construction
- Marine Duty Version
- Corrosion Resistant Finish
- Food Grade Finish
- Low Headroom Design
- Extended Lift Heights
- Customized Hook Opening
- Nickel Plated Chain
- Customized Paint Shade
- Name Plate Branding
Standard Scope of Supply
- Chain Pulley Block Assembly
- Upper Suspension Hook
- Lower Load Hook
- Heat Treated Alloy Steel Load Chain
- Hand Chain
- Mechanical Brake Assembly
- Safety Latches
- Operating Instructions
- Test Certificate
- Warranty Certificate
Applications
Jayco Chain Pulley Blocks are widely used in:
Why Choose Jayco Chain Pulley Block?
Technical Advantages
- Compact and Portable Design
- Heavy Duty Steel Construction
- High Strength Alloy Steel Load Chain
- Precision Machined Gear Train
- Minimum Manual Effort
- Smooth Lifting & Lowering
- Reliable Mechanical Brake
- Corrosion Resistant Finish
- Long Operating Life
- Easy Inspection & Maintenance
- Suitable for Indoor & Outdoor Applications
- Continuous Industrial Service
Frequently Asked Questions (FAQs)
A Hook Suspension Chain Pulley Block is a manually operated lifting device that is suspended from a hook or overhead support and used for lifting, lowering, and positioning heavy loads safely.
Jayco Chain Pulley Blocks are available in Mild Steel (MS) for general industrial applications and Stainless Steel 304 (SS304) for hygienic and corrosive environments. SS316 models can also be supplied on request.
Standard capacities range from 0.5 Ton to 10 Ton. Higher capacities can be manufactured based on customer requirements.
Standard lifting heights are 3, 6, 9, and 12 meters. Customized lifting heights up to 30 meters or more can be provided.
They are widely used in manufacturing plants, engineering workshops, warehouses, fabrication shops, construction sites, steel plants, power plants, food processing, pharmaceutical, chemical, marine, mining, and maintenance departments.
Jayco Chain Pulley Blocks are equipped with an automatic mechanical load-holding brake, double pawl braking mechanism, heat-treated alloy steel load chain, forged hooks with safety latches, precision chain guides, and are factory load tested to ensure safe and reliable lifting.
Yes. We provide customized lifting capacities, lifting heights, hook openings, corrosion-resistant finishes, stainless steel versions, marine-duty designs, and special application models.
Yes. Jayco offers genuine spare parts, maintenance support, inspection services, and prompt after-sales assistance to ensure reliable and long-lasting performance.
Yes. Both MS and SS304 models are suitable for outdoor applications. For marine or highly corrosive environments, SS304 or SS316 construction is recommended.
Jayco Chain Pulley Blocks combine premium-quality materials, precision engineering, high safety standards, smooth manual operation, long service life, low maintenance, and dependable after-sales support, making them an ideal solution for reliable manual lifting across a wide range of industries.
