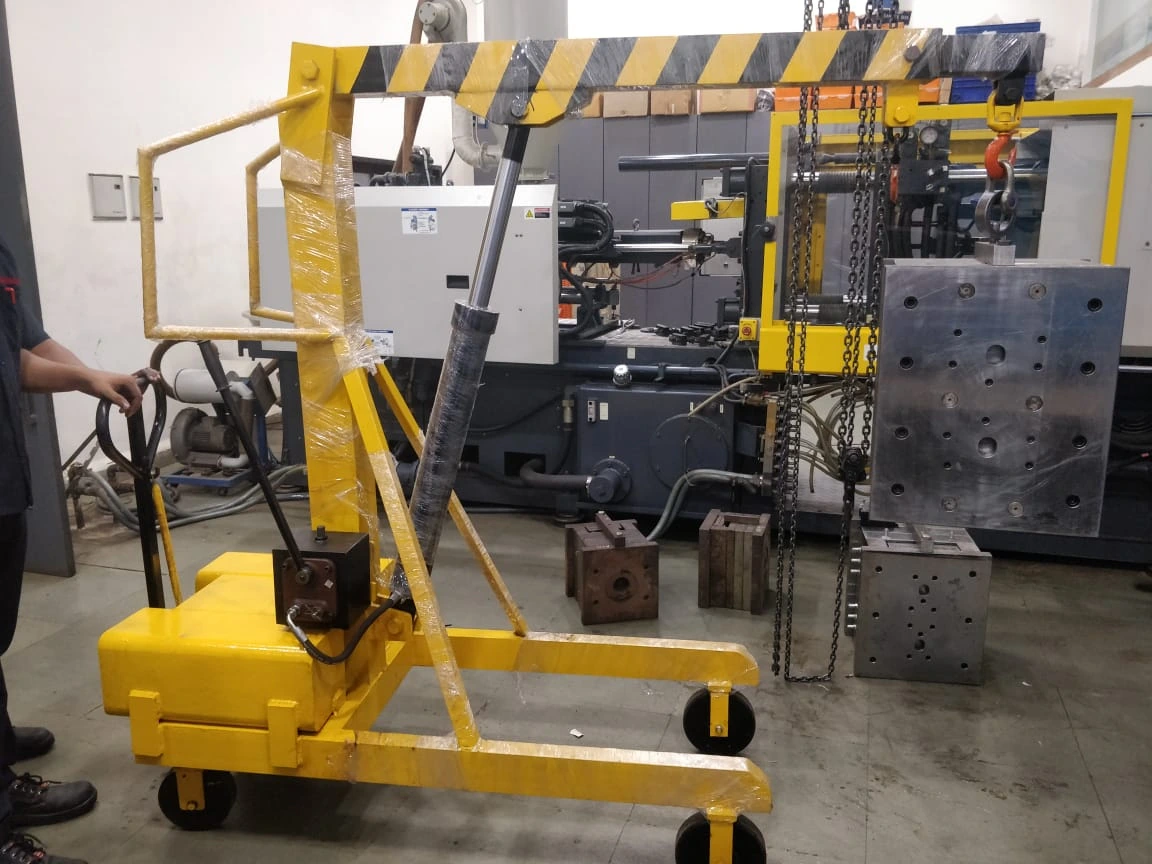

Manual Floor Crane
Jayco Mobile Floor Crane (Manual Operated) is a compact, versatile, and economical lifting solution designed for safe and efficient lifting, loading, unloading, and positioning of heavy materials in workshops, warehouses, maintenance departments, assembly lines, garages, and industrial facilities. Manufactured using premium-quality Mild Steel (MS) and advanced engineering technology, our Mobile Floor Cranes provide excellent stability, smooth operation, high lifting efficiency, and long service life.
The crane is operated by a manual hydraulic hand pump and mounted on heavy-duty swivel caster wheels, allowing easy movement and positioning without the need for external power. Its compact design makes it ideal for confined working areas and maintenance operations.
Jayco Mobile Floor Cranes are available in various lifting capacities and boom lengths and can be customized to suit specific customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Mobile Floor Crane (Manual Operated) |
| Operation | Manual Hydraulic |
| Lifting Mechanism | Hydraulic Hand Pump |
| Construction Material | Heavy-Duty Mild Steel (MS) |
| Safe Working Load (SWL) | 250 kg to 2,000 kg (0.25 Ton to 2 Ton) |
| Maximum Lift Height | Up to 3 Meters |
| Boom Type | Fixed / Telescopic Adjustable Boom |
| Boom Positions | 3 to 5 Adjustable Positions |
| Hook | Forged Alloy Steel Hook with Safety Latch |
| Hydraulic Cylinder | Heavy-Duty Single Acting Hydraulic Cylinder |
| Caster Wheels | Heavy-Duty PU / Nylon / Cast Iron Wheels |
| Front Wheels | Fixed Load Wheels |
| Rear Wheels | Swivel Caster Wheels with Brake (Optional) |
| Base Design | Fixed. |
| Surface Finish | Epoxy Primer with Industrial PU Paint |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Material Lifting, Loading & Maintenance Operations |
Design & Manufacturing Standards
- IS 3177 (Applicable Design Practices)
Standard Features
Mechanical Features
- Heavy-duty fabricated Mild Steel frame
- Manual hydraulic lifting mechanism
- High-strength telescopic boom
- Adjustable lifting positions
- Heavy-duty forged hook with safety latch
- Stable wide-base construction
- Smooth lifting and lowering operation
- Compact and robust design
Hydraulic Features
- Manual hydraulic hand pump
- Heavy-duty hydraulic cylinder
- Controlled lowering valve
- Leak-proof hydraulic system
- Maintenance-friendly design
Mobility Features
- Heavy-duty swivel caster wheels
- Smooth floor movement
- Easy manoeuvrability
- Compact footprint
- Suitable for confined working areas
- Optional wheel locking system
Safety Features
- Overload-resistant structural design
- Forged safety hook with latch
- Stable low center of gravity
- Controlled lowering mechanism
- Heavy-duty wheel assembly
- Factory load tested
- High safety factor
Optional Features
- Adjustable Telescopic Boom
- PU Wheels
- Nylon Wheels
- Cast Iron Wheels
- Swivel Wheels with Brake
- Stainless Steel Hook
- Special Paint Shade
- Customized Boom Length
- Customized Lift Height
- Customized Base Width
- Heavy-Duty Industrial Design
Standard Scope of Supply
- Mobile Floor Crane
- Hydraulic Cylinder
- Hydraulic Hand Pump
- Adjustable Boom
- Forged Hook with Safety Latch
- Heavy-Duty Wheel Assembly
- Operating Handle
- Fasteners & Hardware
- Operation & Maintenance Manual
- Warranty Certificate
Applications
Jayco Mobile Floor Cranes are widely used in:
Why Choose Jayco Mobile Floor Crane?
Technical Advantages
- No electrical power required
- Portable and easy to move
- Compact design for confined spaces
- Heavy-duty hydraulic lifting system
- Adjustable boom for multiple lifting capacities
- Smooth lifting and controlled lowering
- Robust fabricated construction
- Long service life
- Low maintenance
- Suitable for indoor industrial applications
Frequently Asked Questions (FAQs)
A Mobile Floor Crane is a portable lifting device equipped with a hydraulic lifting mechanism and wheels, designed for lifting, transporting, and positioning heavy materials within industrial facilities.
Jayco Mobile Floor Cranes are available in capacities ranging from 250 kg (0.25 Ton) to 2 Ton. Higher capacities can be supplied on request.
Yes. The crane uses a manual hydraulic hand pump for lifting and a controlled release valve for safe lowering of loads.
Yes. The crane can be supplied with a telescopic adjustable boom having multiple lifting positions to suit different load requirements.
They are widely used in manufacturing plants, engineering workshops, warehouses, automobile workshops, maintenance departments, machine shops, fabrication units, and material handling applications.
Yes. The crane can be moved carefully over smooth and level floors while carrying loads within its rated capacity, following safe operating practices.
The crane is supplied in a ready-to-assemble condition with an Operation & Maintenance Manual. Technical assistance is available whenever required.
Yes. Jayco provides genuine spare parts, maintenance support, inspections, and prompt after-sales service to ensure reliable and long-lasting performance.
Yes. We offer customized lifting capacities, boom lengths, lift heights, wheel types, base dimensions, and paint finishes according to customer requirements.
Jayco Mobile Floor Cranes are equipped with a heavy-duty hydraulic system, forged hook with safety latch, stable wide-base frame, controlled lowering valve, robust wheel assembly, and factory-tested construction to ensure safe and reliable lifting operations.
