Hydraulic Goods Lift
Jayco Hydraulic Goods Lift is a heavy-duty, safe, and highly efficient vertical material handling solution designed for transporting goods, pallets, machinery, dies, raw materials, finished products, and industrial equipment between different floor levels. Powered by a high-performance hydraulic system, the lift provides smooth lifting, precise positioning, quiet operation, and excellent load-carrying capability while ensuring maximum operational safety.
Designed and manufactured using premium-quality components and advanced engineering technology, Jayco Hydraulic Goods Lifts are built for continuous industrial operation with minimum maintenance. The lift is guided by a rigid mast structure and operated through a hydraulic power pack, offering stable and vibration-free lifting even under heavy loads.
Jayco Hydraulic Goods Lifts are available in Single Mast and Double Mast configurations to suit different lifting capacities, platform sizes, lifting heights, and installation requirements.
Single Mast Hydraulic Goods Lift is recommended for compact installations, smaller platform sizes, and medium-duty applications where space is limited.
Double Mast Hydraulic Goods Lift is designed for larger platforms, higher lifting capacities, greater lifting heights, and heavy-duty industrial applications requiring maximum stability and balanced load distribution.
Every Jayco Hydraulic Goods Lift is custom-designed to meet customer-specific requirements and can be supplied with various platform sizes, lifting heights, floor configurations, door arrangements, and optional safety features.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Hydraulic Goods Lift |
| Configuration | Single Mast / Double Mast |
| Operation | Electro-Hydraulic Operated |
| Drive Type | Hydraulic Cylinder |
| Safe Working Load (SWL) | 500 kg to 5,000 kg (0.5 Ton to 5 Ton) |
| Platform Size | As per Customer Requirement |
| Height of Lift | Up to 20 Meters |
| Number of Floors | Ground + Multiple Floors (G+1, G+2, G+3 & Above) |
| Lifting Speed | 2 to 8 Meters/Minute |
| Guide System | Heavy-Duty Guide Rails |
| Hydraulic System | Heavy-Duty Hydraulic Power Pack |
| Hydraulic Cylinder | Single Acting / Double Acting |
| Platform Construction | Heavy-Duty MS Fabricated Platform |
| Platform Floor | Anti-Skid MS Chequered Plate |
| Landing Doors | Swing Type / Sliding Type / Collapsible Doors |
| Motor | Squirrel Cage Induction Motor |
| Motor Insulation | Class F |
| Protection Class | IP55 (Optional IP65) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Control System | Push Button Station / Floor Call & Send System |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Vertical Material Handling |
Design & Manufacturing Standards
- Designed as per applicable IS Standards
- IS 9878 – Hydraulic Lift Guidelines
- IS 807 – Structural Steel Design
- Single Mast Hydraulic Goods Lift
- Best Suitable For
- Compact installation area
- Smaller platform sizes
- Medium-duty industrial applications
- Warehouses
- Retail stores
- Small manufacturing units
- Packaging industries
- Machine shops
- Advantages
- Space-saving design
- Economical solution
- Faster installation
- Lower maintenance
- Smooth lifting operation
- Compact footprint
- Ideal for capacities up to approximately 2 Ton
- Double Mast Hydraulic Goods Lift
- Best Suitable For
- Heavy industrial applications
- Large platform sizes
- Heavy machinery transportation
- Automobile industries
- Steel industries
- Warehouses
- Manufacturing plants
- Logistics centers
- Advantages
- Higher lifting capacity
- Better structural stability
- Balanced load distribution
- Suitable for higher lifting heights
- Larger platform dimensions
- Reduced platform deflection
- Excellent lifting accuracy
- Suitable for continuous heavy-duty operation
Standard Features
Mechanical Features
- Heavy-duty fabricated steel platform
- Single Mast or Double Mast construction
- Precision guide rail system
- High-strength hydraulic cylinder
- Heavy-duty hydraulic power pack
- Anti-skid chequered plate flooring
- Heavy-duty structural frame
- Smooth vertical travel
- Compact design
- Long service life
Hydraulic Features
- Heavy-duty hydraulic power unit
- Precision hydraulic valves
- Imported hydraulic seals
- Leak-proof hydraulic piping
- Heavy-duty oil reservoir
- Smooth lifting and lowering
- Pressure compensated hydraulic system
- Low noise hydraulic operation
Electrical Features
- Energy-efficient induction motor
- Class F insulated motor
- Heavy-duty electrical control panel
- Push Button Station
- IP55 protected electrical components
- Floor Call System (Optional)
- Phase protection
- Reliable electrical wiring
Safety Features
- Hydraulic Safety Valve
- Hose Burst Protection Valve
- Pressure Relief Valve
- Mechanical Safety Lock
- Upper Limit Switch
- Lower Limit Switch
- Emergency Stop Button
- Door Safety Interlock
- Anti-Fall Safety Device
- Emergency Manual Lowering
- Overload Protection (Optional)
- Non-slip Platform Floor
- Mechanical End Stops
Optional Features
- Automatic Floor Leveling
- Variable Frequency Drive (VFD)
- Automatic Sliding Doors
- Collapsible Landing Doors
- Digital Floor Indicator
- Digital Load Display
- Load Limiter
- Battery Backup
- Emergency Rescue Device
- Remote Monitoring System
- Stainless Steel Platform (SS304 / SS316)
- Weatherproof Outdoor Design
- Pitless Installation
- Dual Hydraulic Cylinders
- Touch Screen HMI
- Wireless Remote Control
- Customized Platform Size
- Customized Lift Height
- Customized Paint Shade
Standard Scope of Supply
- Single Mast / Double Mast Structure
- Hydraulic Platform
- Hydraulic Cylinder(s)
- Hydraulic Power Pack
- Electric Motor
- Electrical Control Panel
- Push Button Station
- Guide Rails
- Landing Doors
- Hydraulic Hoses & Fittings
- Upper & Lower Limit Switches
- Mechanical Safety Devices
- Buffers & Safety Stops
- Foundation Layout Drawing
- Operation & Maintenance Manual
- General Arrangement Drawing
- Routine Test Certificate
Applications
Jayco Hydraulic Goods Lifts are widely used in:
Why Choose Jayco Hydraulic Goods Lift?
Technical Advantages
- Compact installation
- Smooth and jerk-free lifting
- Heavy-duty hydraulic drive system
- Excellent platform stability
- Precision floor stopping
- High structural strength
- Low power consumption
- Quiet operation
- Long operating life
- Continuous industrial duty
- Suitable for indoor and outdoor installations
Frequently Asked Questions (FAQs)
A Hydraulic Goods Lift is a vertical lifting system that uses hydraulic cylinders and a hydraulic power pack to safely transport goods, pallets, machinery, and industrial materials between different floor levels.
A Single Mast lift is suitable for compact spaces, smaller platforms, and medium-duty applications. A Double Mast lift provides greater stability, supports larger platform sizes, higher lifting capacities, and is ideal for heavy-duty industrial applications.
Jayco Hydraulic Goods Lifts are available from 100 kg to 20 Ton, depending on the application and customer requirements.
Yes. We manufacture customized lifts with different platform sizes, lifting heights, capacities, number of stops, door arrangements, and control systems.
Our Hydraulic Goods Lifts are widely used in manufacturing plants, warehouses, logistics centers, engineering industries, automobile plants, pharmaceutical industries, food processing units, textile industries, commercial buildings, and material handling facilities.
The lift can be operated using a Push Button Station, Floor Call & Send System, or an optional PLC-based automatic control system.
Yes. Jayco provides complete installation, testing, commissioning, operator training, and technical support.
Yes. We supply genuine hydraulic and electrical spare parts and provide prompt after-sales service across India.
Yes. Outdoor-duty models are available with weatherproof electrical components, corrosion-resistant paint systems, and customized structural arrangements suitable for outdoor operation.
Jayco Hydraulic Goods Lifts are equipped with hydraulic safety valves, hose burst protection valves, pressure relief valves, upper & lower limit switches, emergency stop buttons, door safety interlocks, anti-fall safety devices, mechanical safety locks, overload protection (optional), and emergency manual lowering systems to ensure safe, reliable, and efficient operation.

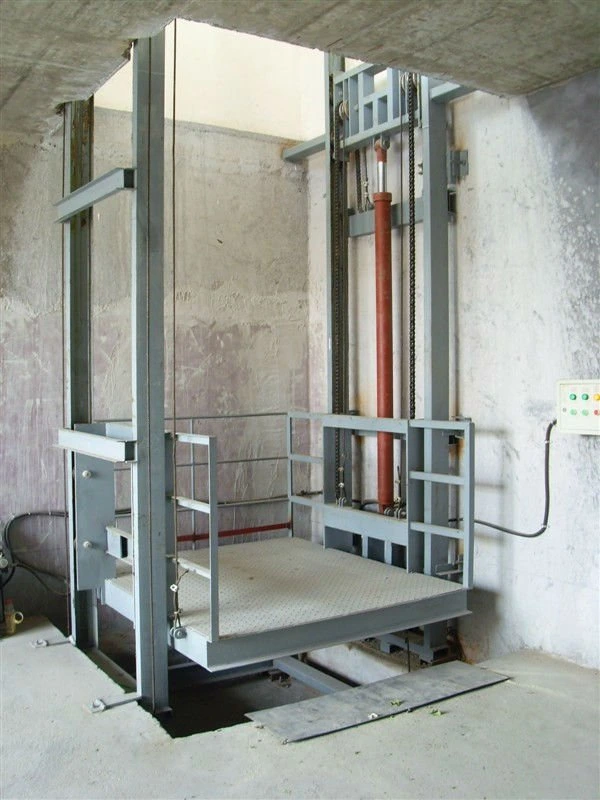

Gallery
