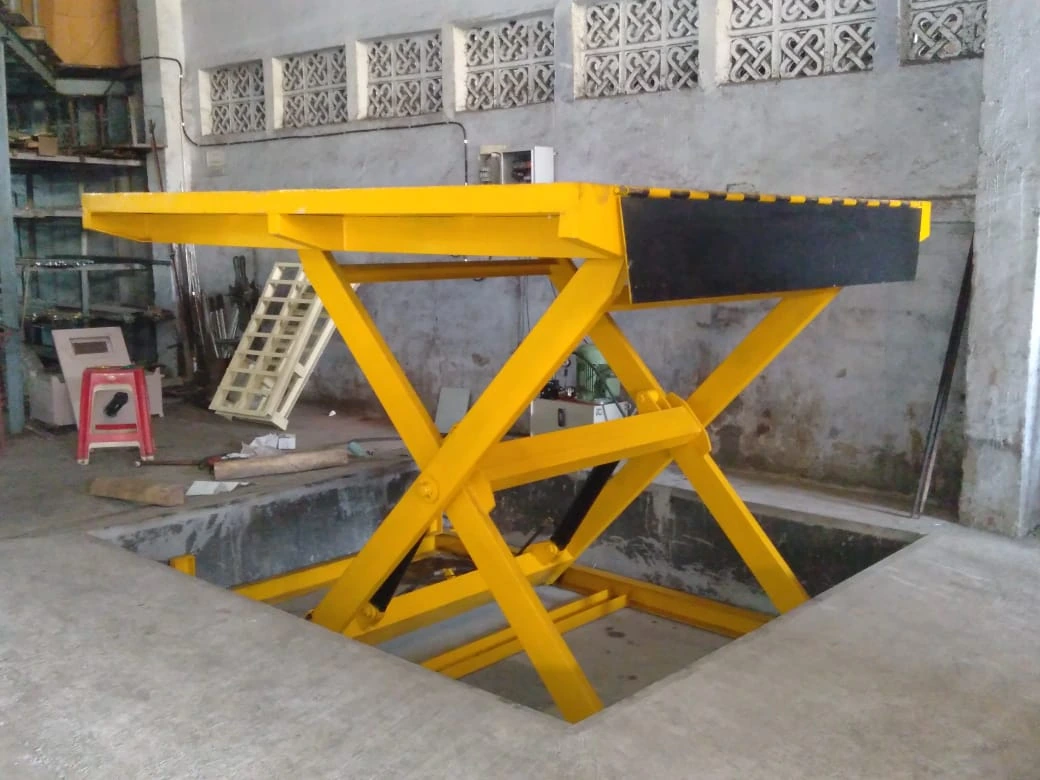

Hydraulic Scissor Lift (Fixed Type)
Jayco Hydraulic Scissor Lift (Fixed Type) is a robust, safe, and efficient lifting platform designed for vertical lifting of goods, equipment, and personnel between different working levels. Manufactured using premium-quality Mild Steel (MS) and advanced hydraulic technology, our Fixed Type Hydraulic Scissor Lifts provide smooth lifting, excellent stability, high load-bearing capacity, and reliable performance with minimal maintenance.
The lift is permanently installed in a pit or above floor level and is operated through an electro-hydraulic power pack. It is ideal for production lines, warehouses, loading bays, assembly stations, mezzanine floors, material handling systems, and industrial facilities where frequent vertical transportation is required.
Jayco Hydraulic Scissor Lifts are available in various platform sizes, lifting heights, and capacities and can be fully customized to meet specific customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Hydraulic Scissor Lift (Fixed Type) |
| Operation | Electro-Hydraulic |
| Construction Material | Heavy-Duty Mild Steel (MS) |
| Safe Working Load (SWL) | 500 kg to 10,000 kg (0.5 Ton to 10 Ton) |
| Platform Size | Customized as per Requirement |
| Platform Length | Up to 5 Meters |
| Platform Width | Up to 3 Meters |
| Maximum Lift Height | Up to 12 Meters |
| Lift Mechanism | Heavy-Duty Scissor Arms |
| Hydraulic Cylinder | Heavy-Duty Double Acting Cylinder |
| Hydraulic System | Electro-Hydraulic Power Pack |
| Lifting Speed | 3–6 Meters/Minute |
| Motor | Three Phase AC Induction Motor |
| Motor Rating | As per Capacity |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Control System | Push Button Station / Control Panel |
| Installation Type | Pit Mounted / Floor Mounted |
| Platform Deck | Anti-Skid MS Chequered Plate |
| Surface Finish | Epoxy Primer with Industrial PU Paint |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Vertical Material Handling |
Design & Manufacturing Standards
- IS 3696 – Safety Requirements for Working Platforms
- IS 3177 – Applicable Design Practices
- Designed as per International Hydraulic Lift Standards
Standard Features
Structural Features
- Heavy-duty fabricated Mild Steel platform
- Reinforced scissor arm construction
- Anti-skid chequered plate platform
- Precision-machined pivot pins
- Heavy-duty structural frame
- Compact and rigid design
- High load-bearing capacity
- Long service life
Hydraulic Features
- Electro-hydraulic power pack
- Heavy-duty hydraulic cylinders
- Smooth lifting and lowering
- Leak-proof hydraulic system
- Low-noise hydraulic operation
- Controlled descent valve
- Maintenance-friendly design
Electrical Features
- Energy-efficient motor
- Push button operating station
- Heavy-duty electrical control panel
- Motor overload protection
- Phase failure & phase reversal protection (Optional)
- Emergency stop button
- IP55 protected electrical components
Safety Features
- Emergency stop button
- Upper & lower limit switches
- Hydraulic hose burst valve
- Mechanical maintenance safety lock
- Overload protection (Optional)
- Anti-skid platform surface
- Safety toe guards
- Factory load tested
- High safety factor
Optional Features
- Double Scissor Lift
- Tandem Scissor Lift
- Stainless Steel Platform
- Hot Dip Galvanized Finish
- Variable Frequency Drive (VFD)
- Wireless Remote Control
- Safety Bell & Warning Light
- Accordion Safety Bellows
- Guard Rails
- Swing Gate / Sliding Gate
- Automatic Landing Doors
- Load Limiter
- Digital Load Indicator
- Explosion Proof Hydraulic System
- Flameproof Electrical Components
- Weatherproof Outdoor Design
- Battery Backup System
- Customized Platform Size
- Customized Lift Height
- Special Paint Shade
Standard Scope of Supply
- Hydraulic Scissor Lift Platform
- Heavy-Duty Scissor Mechanism
- Hydraulic Cylinders
- Electro-Hydraulic Power Pack
- Electrical Control Panel
- Push Button Operating Station
- Hydraulic Hoses & Fittings
- Anchor Fasteners
- Foundation Layout Drawing
- Operation & Maintenance Manual
- Routine Test Certificate
- Warranty Certificate
Applications
Jayco Hydraulic Scissor Lifts are widely used in:
Why Choose Jayco Hydraulic Scissor Lift?
Technical Advantages
- Smooth electro-hydraulic lifting operation
- Heavy-duty scissor arm mechanism
- High structural rigidity and stability
- Compact pit-mounted design saves space
- Suitable for continuous industrial operation
- Low noise and vibration
- Energy-efficient hydraulic system
- Easy maintenance
- Long service life
- Excellent load stability throughout the lifting cycle
Frequently Asked Questions (FAQs)
A Hydraulic Scissor Lift (Fixed Type) is a permanently installed lifting platform that uses a hydraulic scissor mechanism to raise and lower goods or personnel safely between different levels.
Jayco Hydraulic Scissor Lifts are available in capacities ranging from 500 kg (0.5 Ton) to 10 Ton. Higher capacities can be designed and manufactured on request.
Yes. We offer customized platform sizes, lifting heights, load capacities, control systems, installation types, and safety features according to customer requirements.
They are widely used in manufacturing plants, warehouses, logistics centers, automobile industries, pharmaceutical industries, food processing plants, assembly lines, loading bays, and material handling systems.
Yes. The lift can be supplied as a pit-mounted model for flush floor operation or as an above-floor mounted model, depending on site conditions.
Yes. Jayco provides installation, testing, commissioning, operator training, and complete technical support for all Hydraulic Scissor Lift systems.
Yes. We provide genuine spare parts, preventive maintenance services, inspections, and prompt after-sales support to ensure reliable operation.
Yes. Outdoor models are available with weatherproof electrical components, corrosion-resistant paint systems, and galvanized structures for long-term outdoor use.
Yes. Personnel lifting platforms can be supplied with guard rails, safety gates, emergency lowering systems, interlocks, and additional safety devices in accordance with applicable safety standards.
Jayco Hydraulic Scissor Lifts are equipped with hydraulic hose burst valves, emergency stop buttons, upper and lower limit switches, mechanical maintenance locks, overload protection (optional), anti-skid platforms, safety toe guards, and factory-tested hydraulic systems to ensure safe, reliable, and efficient lifting operations.
Gallery
