Wire Rope Electric Hoist
Jayco Wire Rope Electric Hoist with Motorized Trolley is a heavy-duty, high-performance lifting solution engineered for safe, efficient, and reliable material handling across a wide range of industrial applications. Manufactured using premium-quality components and advanced engineering practices, our hoists deliver smooth operation, superior durability, high operational safety, and minimal maintenance.
Designed for continuous industrial duty, Jayco Wire Rope Electric Hoists are suitable for factories, warehouses, engineering workshops, fabrication units, steel plants, foundries, cement plants, power plants, chemical industries, pharmaceutical industries, and other material handling applications.
Available in a wide range of lifting capacities and lifting heights, each hoist can be customized to meet specific operational requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Wire Rope Electric Hoist with Motorized Trolley |
| Operation | Electric Operated |
| Control | Pendant Push Button Station / Optional Wireless Radio Remote Control |
| Safe Working Load (SWL) | 500 kg to 50,000 kg (0.5 Ton to 50 Ton) |
| Height of Lift | Up to 80 Meters |
| Hoisting Speed | 4–8 Meters/Minute |
| Cross Travel Speed | 4–18 Meters/Minute |
| Creep Speed | Optional |
| Duty Classification | IS 3938 |
| Hoisting Motor | Squirrel Cage Induction Motor with Fail-Safe Electromagnetic Brake |
| Cross Travel Motor | Squirrel Cage Induction Geared Motor |
| Motor Insulation | Class F |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Power Supply Arrangement | Festoon Cable System / Trailing Cable System |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Industrial Material Handling & Lifting |
Standard Features
- Heavy-duty fabricated steel construction
- Compact and space-saving design
- High-strength galvanized wire rope
- Precision machined rope drum
- Smooth lifting and cross travel operation
- Fail-safe electromagnetic brake
- Energy-efficient motors
- Quiet and vibration-free performance
- Low maintenance design
- Long service life
- Corrosion-resistant industrial paint finish
- Easy installation and operation
- Manufactured in accordance with IS 3938
- Suitable for continuous industrial operation
- Available with customized specifications
Optional Features
- Wireless Radio Remote Control
- Dual Hoisting Speed
- Variable Frequency Drive (VFD)
- Flameproof / Explosion Proof Design
- Load Limiter
- Digital Load Display
- Overload Protection System
- Anti-Collision System
- Rope Guide
- Limit Switches
- Weatherproof Electrical Panel
- Customized Paint Shade
- Higher Lifting Heights
- Special Duty Classification
Applications
Jayco Wire Rope Electric Hoists are widely used in:
Why Choose Jayco Wire Rope Electric Hoist?
Technical Advantages
- Precision-engineered gearbox for smooth operation
- High-quality wire rope with enhanced safety factor
- Efficient braking system for safe load handling
- Durable fabricated trolley frame
- Reliable electrical control panel
- Low power consumption
- Minimal maintenance requirements
- Long operating life
- Suitable for intensive industrial applications
Frequently Asked Questions (FAQs)
A Wire Rope Electric Hoist is an electrically operated lifting machine used for lifting, lowering, and transporting heavy loads safely and efficiently in industrial facilities.
Jayco manufactures Wire Rope Electric Hoists with capacities ranging from 500 kg (0.5 Ton) to 50 Ton. Higher capacities can be supplied on request.
Yes. We offer customized lifting capacities, lifting heights, travel speeds, duty classifications, beam sizes, control systems, power supply arrangements, and other specifications to meet customer requirements.
Our hoists are widely used in manufacturing plants, engineering workshops, steel plants, warehouses, fabrication units, foundries, cement plants, automobile industries, power plants, chemical plants, pharmaceutical industries, and material handling systems.
The hoist can be operated using a Pendant Push Button Station or an optional Wireless Radio Remote Control for greater convenience and improved operator safety.
- High lifting efficiency
- Smooth and reliable operation
- Heavy-duty construction
- Long service life
- Low maintenance
- Energy-efficient performance
- Customized solutions
- Excellent after-sales support
Yes. Jayco provides installation, testing, commissioning, operator training, and complete technical support whenever required.
Yes. We maintain the availability of genuine spare parts and provide prompt after-sales service to ensure maximum equipment uptime.
Yes. Our Wire Rope Electric Hoists are suitable for installation on EOT Cranes, Gantry Cranes, Jib Cranes, Monorail Systems, and other customized material handling equipment.
Jayco hoists are equipped with a fail-safe electromagnetic brake, limit switches, high-strength wire rope, overload protection options, and robust construction to ensure safe and reliable operation.

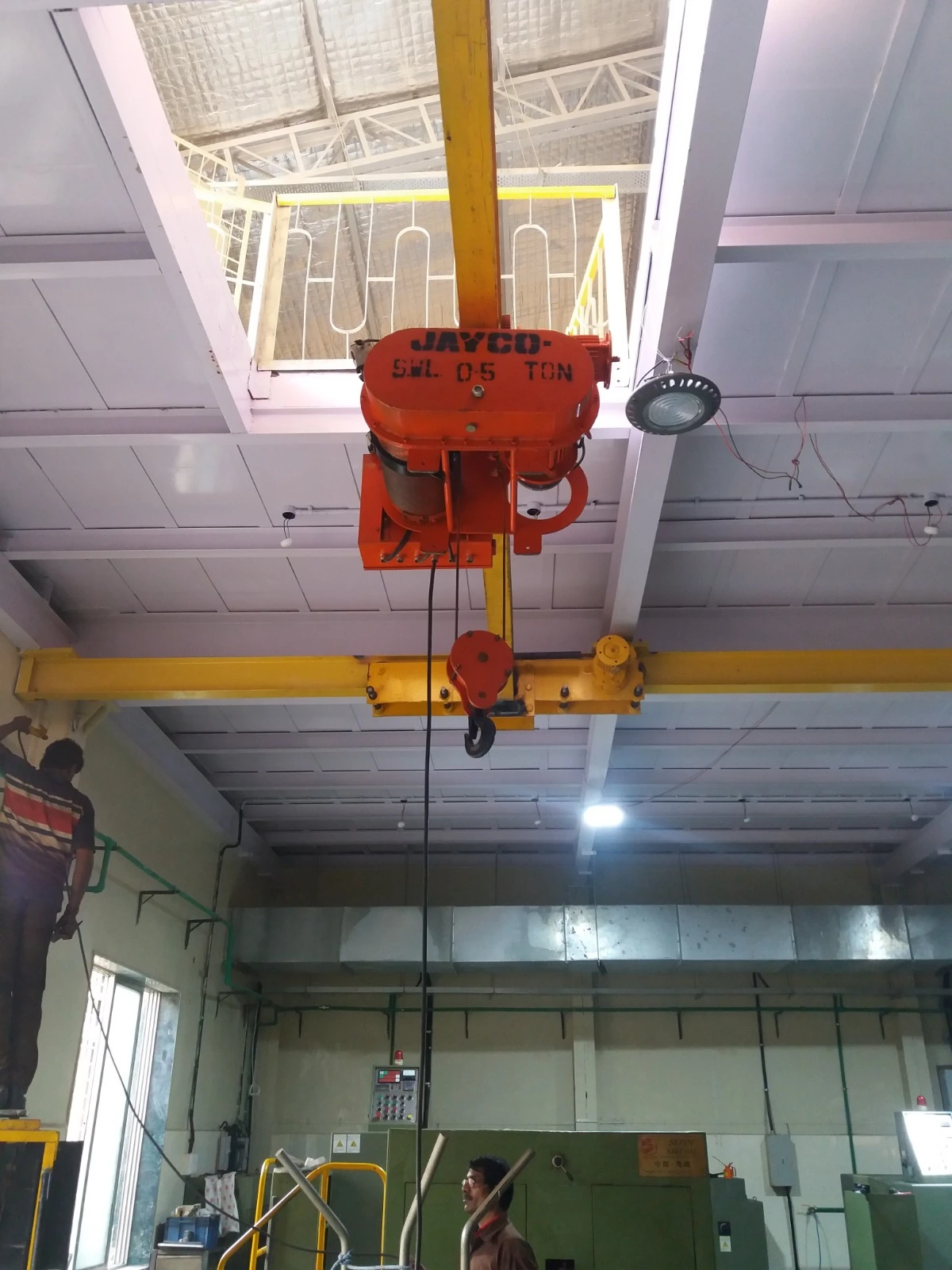

Gallery
