EOT Crane – Single Girder
Jayco Single Girder EOT (Electric Overhead Traveling) Crane is a reliable, efficient, and cost-effective material handling solution designed for lifting and transporting loads within factories, warehouses, workshops, and industrial facilities. Manufactured using premium-quality components and advanced engineering technology, our Single Girder EOT Cranes offer smooth operation, precise load control, high operational safety, and long service life.
The crane consists of a single bridge girder supported on end carriages, with an Electric Wire Rope Hoist or Electric Chain Hoist travelling on the bottom flange of the girder. Its optimized structural design offers excellent hook approach, reduced dead weight, smooth operation, and maximum utilization of available workspace.
Jayco Single Girder EOT Cranes are available in a wide range of lifting capacities, spans, and lifting heights and can be customized to meet specific customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Single Girder EOT Crane |
| Crane Type | Electric Overhead Traveling Crane |
| Operation | Electric Operated |
| Hoist Type | Electric Wire Rope Hoist / Electric Chain Hoist |
| Safe Working Load (SWL) | 500 kg to 50,000 kg (0.5 Ton to 50 Ton) |
| Span | Up to 30 Meters |
| Height of Lift | Up to 30 Meters |
| Hoisting Speed | As per Application |
| Cross Travel Speed (CT) | 5–20 Meters/Minute |
| Long Travel Speed (LT) | 5–20 Meters/Minute |
| Creep Speed | Optional |
| Duty Classification | IS 3177 / IS 807 / FEM Standards |
| Bridge Construction | Fabricated Box Girder / Rolled Section Girder |
| Hoisting Motor | Squirrel Cage Induction Motor with Electromagnetic Brake |
| Travel Motors | Squirrel Cage Induction Geared Motors |
| Motor Insulation | Class F |
| Protection Class | IP55 (Optional IP65) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Power Supply Arrangement | DSL Busbar / Festoon Cable System |
| Control System | Pendant Push Button Station / Radio Remote Control / Cabin Control (Optional) |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Indoor & Outdoor Material Handling |
Standard Features
Mechanical Features
- Heavy-duty fabricated bridge girder
- Precision-machined end carriages
- Electric wire rope or chain hoist
- Compact and robust construction
- Heavy-duty crane wheels
- High-strength hook block with safety latch
- Smooth and accurate load movement
- Low headroom design available
Electrical Features
- Energy-efficient motors
- Electromagnetic fail-safe brake
- Class F insulated motors
- IP55 protected electrical components
- Festoon cable or DSL power supply
- Reliable electrical control panel
- Pendant Push Button Station
Safety Features
- Overload protection (Optional)
- Upper & Lower Limit Switches
- Emergency Stop Button
- Travel Limit Switches (Optional)
- Rubber Buffers
- Mechanical End Stops
- Phase Failure & Phase Reversal Protection (Optional)
Optional Features
- Variable Frequency Drive (VFD)
- Dual Hoisting Speed
- Dual Travel Speed
- Wireless Radio Remote Control
- Load Limiter
- Digital Load Display
- Anti-Collision System
- Flameproof / Explosion Proof Design
- Weatherproof Outdoor Design
- Crane Cabin Operation
- Independent Maintenance Platform
- Crane Lighting System
- Siren & Warning Light
- Customized Span & Lift
- Customized Paint Shade
Standard Scope of Supply
- Single Girder Bridge
- End Carriages
- Electric Wire Rope Hoist / Electric Chain Hoist
- Motorized Cross Travel Trolley
- Long Travel Drive Units
- Hoisting & Travel Motors
- Hook Block
- Wire Rope / Load Chain
- Electrical Control Panel
- Pendant Push Button Station
- Power Supply System
- Festoon Cable / DSL Busbar
- Buffers & End Stops
- Foundation Bolt Layout Drawing
- Operation & Maintenance Manual
Applications
Jayco Single Girder EOT Cranes are widely used in:
Why Choose Jayco Single Girder EOT Crane?
Technical Advantages
- Optimized bridge girder design for minimum deflection
- Smooth and precise crane travel
- High lifting efficiency
- Compact and space-saving construction
- Low power consumption
- Heavy-duty geared drive system
- Reliable braking system
- Long service life
- Easy maintenance
- Suitable for continuous industrial operation
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture & Erection of Cranes
- IS 3938 – Electric Wire Rope Hoists
Frequently Asked Questions (FAQs)
A Single Girder EOT (Electric Overhead Traveling) Crane is an overhead crane with one bridge girder that uses an electric hoist to lift, lower, and transport materials safely within an industrial facility.
Jayco Single Girder EOT Cranes are available in capacities ranging from 500 kg (0.5 Ton) to 50 Ton. Higher capacities can also be designed based on application requirements.
Our Single Girder EOT Cranes are available with spans up to 30 meters. Larger spans can be provided based on engineering feasibility.
Yes. We offer customized lifting capacities, spans, lifting heights, duty classifications, travel speeds, control systems, and power supply arrangements to suit specific customer requirements.
They are widely used in manufacturing plants, engineering workshops, warehouses, fabrication units, automobile industries, power plants, steel plants, cement plants, logistics centers, and general material handling applications.
The crane can be operated using a Pendant Push Button Station, Wireless Radio Remote Control, or Cabin Control, depending on the application.
Yes. Jayco provides installation, alignment, testing, commissioning, operator training, and complete technical support.
Yes. We supply genuine spare parts and provide prompt after-sales service to ensure reliable and uninterrupted crane operation.
Yes. Outdoor versions are available with weatherproof electrical equipment, rain covers, and protective paint systems suitable for external environments.
Jayco Single Girder EOT Cranes can be equipped with fail-safe electromagnetic brakes, overload protection, upper and lower limit switches, emergency stop buttons, travel limit switches, rubber buffers, anti-collision systems (optional), and phase protection devices to ensure safe and reliable operation.

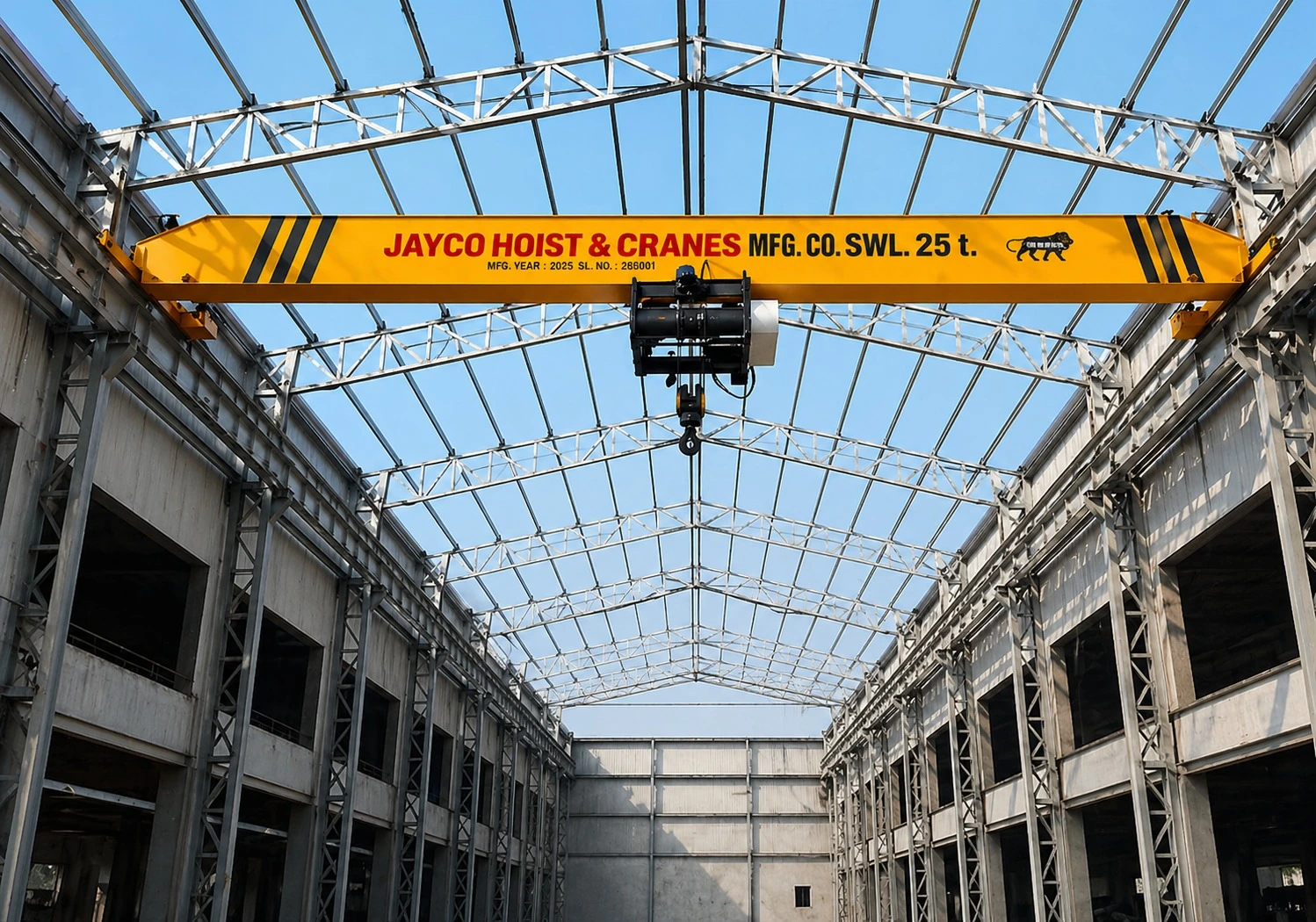

Gallery
