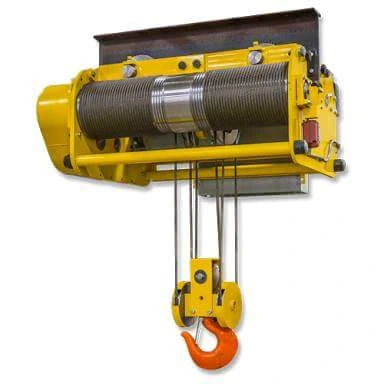

Low Headroom Hoist
Jayco Low Headroom Hoist is a specially engineered lifting solution designed to maximize lifting height in buildings with restricted headroom. Its compact design minimizes the distance between the hook and the runway beam, allowing greater hook approach and increased lifting height without requiring additional structural modifications.
Manufactured using premium-quality components and advanced engineering technology, Jayco Low Headroom Hoists provide smooth operation, high efficiency, superior durability, and reliable performance for continuous industrial applications. Available with Electric Wire Rope Hoist or Electric Chain Hoist configurations, these hoists are ideal for industries where optimum space utilization is essential.
Jayco Low Headroom Hoists are widely used in factories, warehouses, engineering workshops, fabrication units, automobile industries, power plants, steel plants, and other industrial material handling applications. They are available in various lifting capacities and lifting heights and can be customized to meet specific customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Low Headroom Hoist |
| Hoist Type | Electric Wire Rope Hoist / Electric Chain Hoist |
| Operation | Electric Operated |
| Control | Pendant Push Button Station / Optional Wireless Radio Remote Control |
| Safe Working Load (SWL) | 500 kg to 50,000 kg (0.5 Ton to 50 Ton) |
| Height of Lift | Up to 50 Meters |
| Hoisting Speed | As per Application |
| Cross Travel Speed | 4 to 20 Meters/Minute |
| Creep Speed | Optional |
| Duty Classification | IS 3938 / IS 3177 / FEM Standards |
| Hoisting Motor | Squirrel Cage Induction Motor with Fail-Safe Electromagnetic Brake |
| Cross Travel Motor | Squirrel Cage Induction Geared Motor |
| Motor Insulation | Class F |
| Protection Class | IP55 (Optional IP65) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Power Supply Arrangement | Festoon Cable System |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Industrial Material Handling & Lifting |
Standard Features
- Compact low headroom design for maximum hook height
- Optimized hook approach for improved lifting height
- Heavy-duty fabricated steel construction
- Smooth lifting and cross travel operation
- Precision-engineered gearbox
- High-strength wire rope or alloy steel load chain
- Heavy-duty motorized trolley
- Fail-safe electromagnetic braking system
- Energy-efficient motors
- Quiet and vibration-free operation
- Corrosion-resistant industrial paint finish
- Easy installation and maintenance
- Long service life
- Suitable for continuous industrial duty
- Manufactured using premium-quality components
- Available in customized specifications
Optional Features
- Electric Wire Rope Hoist or Electric Chain Hoist
- Dual Hoisting Speed
- Variable Frequency Drive (VFD)
- Wireless Radio Remote Control
- Flameproof / Explosion Proof Design
- Load Limiter
- Digital Load Display
- Overload Protection System
- Upper & Lower Limit Switches
- Anti-Collision System
- Weatherproof Electrical Panel
- Customized Lifting Height
- Customized Travel Speed
- Customized Paint Shade
Applications
Jayco Low Headroom Hoists are widely used in:
Why Choose Jayco Low Headroom Hoist?
Technical Advantages
- Special low headroom trolley design
- Increased hook approach for maximum lift
- Precision load positioning
- Smooth horizontal travel
- Efficient fail-safe braking system
- Compact installation requiring minimal headroom
- Low power consumption
- Long operating life
- Quiet and vibration-free performance
- Suitable for continuous industrial operation
Frequently Asked Questions (FAQs)
A Low Headroom Hoist is a specially designed electric hoist that minimizes the distance between the hook and the overhead beam, allowing maximum lifting height in buildings with limited headroom.
Jayco Low Headroom Hoists are available in lifting capacities ranging from 500 kg (0.5 Ton) to 50 Ton. Higher capacities can also be supplied upon request.
- A Low Headroom Hoist provides:
- Maximum hook height
- Better utilization of available space
- Compact design
- Smooth operation
- Improved lifting efficiency
- Reliable and safe performance
Yes. We offer customized lifting capacities, lifting heights, travel speeds, duty classifications, control systems, and trolley configurations to meet specific customer requirements.
These hoists are widely used in factories, warehouses, engineering workshops, fabrication units, automobile industries, steel plants, power plants, chemical industries, pharmaceutical industries, and other industrial material handling applications.
The hoist can be operated using a Pendant Push Button Station or an optional Wireless Radio Remote Control.
Yes. Jayco provides installation, testing, commissioning, operator guidance, and technical support whenever required.
Yes. We provide genuine spare parts and reliable after-sales service to ensure uninterrupted operation and long equipment life.
Yes. Jayco Low Headroom Hoists are suitable for installation on Single Girder EOT Cranes, Double Girder EOT Cranes, Gantry Cranes, Monorail Systems, and other customized material handling equipment.
Jayco Low Headroom Hoists are equipped with fail-safe electromagnetic brakes, overload protection options, upper and lower limit switches, precision trolley mechanisms, and robust structural construction to ensure safe, smooth, and reliable lifting operations.
