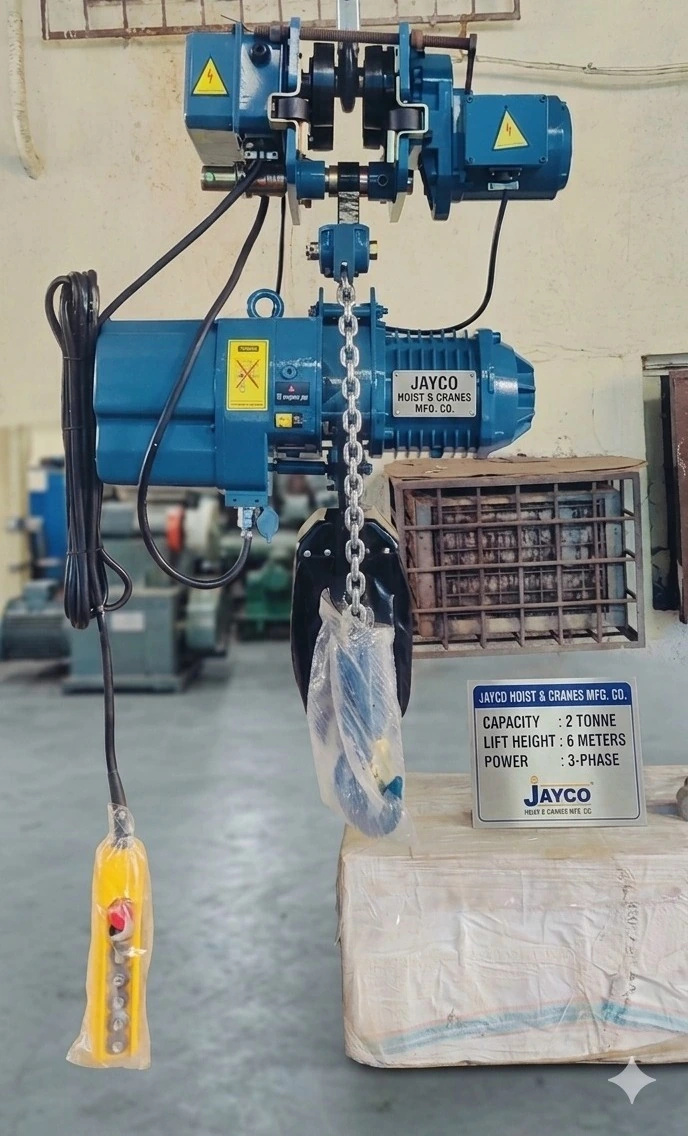

Electric Chain Hoist
Jayco Electric Chain Hoist with Motorized Trolley is a compact, robust, and high-performance lifting solution designed for safe, efficient, and reliable material handling in industrial environments. Manufactured using premium-quality components and advanced engineering technology, our electric chain hoists ensure smooth lifting, precise load positioning, superior durability, and low maintenance.
The motorized trolley provides smooth horizontal movement of loads, making it an ideal choice for production lines, warehouses, engineering workshops, assembly units, fabrication shops, and a wide range of material handling applications where precision and reliability are essential.
Jayco Electric Chain Hoists are available in various lifting capacities and lifting heights and can be customized to meet specific customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Electric Chain Hoist with Motorized Trolley |
| Operation | Electric Operated |
| Control | Pendant Push Button Station / Optional Wireless Radio Remote Control |
| Safe Working Load (SWL) | 500 kg to 5,000 kg (0.5 Ton to 5 Ton) |
| Height of Lift | Up to 30 Meters |
| Hoisting Speed | 2 to 8 Meters/Minute |
| Cross Travel Speed | 5 to 20 Meters/Minute |
| Creep Speed | Optional |
| Duty Classification | M4 / M5 / M6 (IS 3177 / FEM Standards) |
| Hoisting Motor | Squirrel Cage Induction Motor with Electromagnetic Brake |
| Cross Travel Motor | Squirrel Cage Induction Geared Motor |
| Load Chain | Alloy Steel, Grade 80 / Grade 100, Heat Treated |
| Chain Guide | High-Strength, Wear-Resistant Guide |
| Motor Insulation | Class F |
| Protection Class | IP55 (Optional IP65) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Power Supply Arrangement | Festoon Cable System |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Industrial Material Handling & Lifting |
Standard Features
- Compact and lightweight design
- Heavy-duty alloy steel load chain
- Precision-machined load sheave
- Smooth lifting and lowering operation
- Motorized trolley for effortless cross travel
- Fail-safe electromagnetic braking system
- High-strength forged hook with safety latch
- Durable wear-resistant chain guide
- Energy-efficient motor
- Quiet, smooth, and vibration-free performance
- Corrosion-resistant industrial paint finish
- Easy installation and simple maintenance
- Long service life
- Suitable for continuous industrial duty
- Manufactured using premium-quality components
- Available in customized specifications
Optional Features
- Dual Hoisting Speed
- Variable Frequency Drive (VFD)
- Wireless Radio Remote Control
- Flameproof / Explosion Proof Design
- Load Limiter
- Digital Load Display
- Overload Protection System
- Chain Container
- Upper & Lower Limit Switches
- Weatherproof Electrical Panel
- Stainless Steel Load Chain (Special Applications)
- Customized Lifting Heights
- Customized Paint Shades
Applications
Jayco Electric Chain Hoists are widely used in:
Why Choose Jayco Electric Chain Hoist?
Technical Advantages
- Heat-treated alloy steel load chain for extended service life
- Precision-engineered gearbox for smooth and reliable performance
- Compact low-headroom design
- High-strength forged hooks with safety latches
- Efficient fail-safe electromagnetic braking system
- Quiet operation with minimal vibration
- Low power consumption
- Easy maintenance
- Designed for continuous industrial operation
- Excellent load positioning accuracy
Frequently Asked Questions (FAQs)
An Electric Chain Hoist is an electrically operated lifting device that uses a high-strength alloy steel chain to lift, lower, and transport heavy loads safely and efficiently in industrial applications.
Jayco Electric Chain Hoists are available in capacities ranging from 500 kg (0.5 Ton) to 5 Ton. Higher capacities can be supplied on request.
Yes. We offer customized lifting heights, hoisting speeds, trolley speeds, duty classifications, control systems, power supply arrangements, and other specifications to suit your application.
Our Electric Chain Hoists are widely used in manufacturing plants, engineering workshops, warehouses, assembly lines, automobile industries, pharmaceutical industries, food processing plants, machine shops, and material handling systems.
The hoist can be operated using a Pendant Push Button Station or an optional Wireless Radio Remote Control for enhanced operator convenience and safety.
- Compact and lightweight design
- Smooth and precise lifting
- Heavy-duty alloy steel load chain
- Long service life
- Low maintenance
- Energy-efficient operation
- Reliable performance
- Excellent after-sales support
Yes. Jayco provides installation, testing, commissioning, operator guidance, and technical support whenever required.
Yes. We supply genuine spare parts and provide prompt after-sales service to ensure reliable and uninterrupted operation.
Yes. Jayco Electric Chain Hoists are suitable for installation on EOT Cranes, Gantry Cranes, Jib Cranes, Monorail Hoist Systems, and other customized material handling equipment.
Jayco Electric Chain Hoists are equipped with a fail-safe electromagnetic brake, high-strength alloy steel load chain, forged hooks with safety latches, overload protection options, and optional upper and lower limit switches to ensure safe, reliable, and efficient operation.
