EOT Crane – Double Girder
Jayco Double Girder EOT (Electric Overhead Traveling) Crane is a heavy-duty, high-performance material handling solution engineered for lifting, transporting, and positioning heavy loads with maximum safety, precision, and reliability. Designed and manufactured using premium-quality materials and advanced engineering technology, our Double Girder EOT Cranes deliver superior strength, smooth operation, higher lifting capacities, and extended service life for demanding industrial applications.
The crane consists of two fabricated bridge girders supported on robust end carriages, with an Electric Wire Rope Hoist mounted on a motorized crab trolley travelling on rails placed over the girders. This design provides maximum hook height, greater stability, higher load capacity, and excellent operational efficiency, making it ideal for medium and heavy-duty applications.
Jayco Double Girder EOT Cranes are available in a wide range of lifting capacities, spans, lifting heights, and duty classifications. Each crane is custom-designed to suit customer applications and complies with relevant Indian and international standards.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Double Girder EOT Crane |
| Crane Type | Electric Overhead Traveling Crane |
| Operation | Electric Operated |
| Hoist Type | Electric Wire Rope Hoist with Motorized Crab Trolley |
| Safe Working Load (SWL) | 1 Ton to 100 Ton (Higher Capacities on Request) |
| Span | Up to 40 Meters |
| Height of Lift | Up to 50 Meters |
| Hoisting Speed | As per Application |
| Cross Travel Speed (CT) | 5–20 Meters/Minute |
| Long Travel Speed (LT) | 5–20 Meters/Minute |
| Creep Speed | Optional |
| Duty Classification | IS 3177 / IS 807 / FEM Standards |
| Bridge Construction | Fabricated Box Girder |
| End Carriages | Heavy-Duty Welded Steel Construction |
| Hoisting Motor | Squirrel Cage Induction Motor with Electromagnetic Brake |
| Travel Motors | Squirrel Cage Induction Geared Motors |
| Motor Insulation | Class F |
| Protection Class | IP55 (Optional IP65) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Power Supply Arrangement | DSL Busbar / Festoon Cable System |
| Control System | Pendant Push Button Station / Wireless Radio Remote Control / Cabin Control |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Indoor & Outdoor Heavy-Duty Material Handling |
Design & Manufacturing Standards
- IS 3177 – Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture & Erection of Cranes
- IS 3938 – Electric Wire Rope Hoists
- FEM Standards
- IEC Electrical Standards
- ISO 9001 Quality Management System
Standard Features
Mechanical Features
- Heavy-duty fabricated box girders
- Precision-machined end carriages
- Heavy-duty motorized crab trolley
- High-strength forged hook block
- Precision-machined rope drum
- Heavy-duty wire rope
- Optimized bridge design for minimum deflection
- Precision gearboxes
- Heavy-duty crane wheels
- Long service life
Electrical Features
- Energy-efficient squirrel cage induction motors
- Electromagnetic fail-safe braking system
- Class F insulated motors
- IP55 protected electrical equipment
- Reliable electrical control panel
- Pendant Push Button Station
- DSL Busbar / Festoon Cable power supply
- Smooth and reliable electrical controls
Safety Features
- Fail-safe electromagnetic brake
- Overload Protection System (Optional)
- Upper & Lower Limit Switches
- Emergency Stop Button
- Phase Failure & Phase Reversal Protection
- Short Circuit Protection
- Thermal Overload Relay
- Rubber Buffers
- Mechanical End Stops
- Hook Safety Latch
Optional Features
- Variable Frequency Drive (VFD)
- Dual Hoisting Speed
- Dual Travel Speed
- Wireless Radio Remote Control
- Cabin Operation
- Load Limiter
- Digital Load Display
- Anti-Collision System
- Crane Monitoring System
- Flameproof / Explosion Proof Design
- Weatherproof Outdoor Design
- Independent Maintenance Platform
- Crane Lighting System
- Siren & Warning Light
- Online Load Monitoring
- Customized Span & Lift
- Customized Paint Shade
Standard Scope of Supply
- Double Girder Bridge
- End Carriages
- Electric Wire Rope Hoist
- Motorized Crab Trolley
- Long Travel Drive Units
- Hoisting & Travel Motors
- Hook Block
- Wire Rope
- Electrical Control Panel
- Pendant Push Button Station
- Power Supply System
- DSL Busbar / Festoon Cable
- Buffers & End Stops
- Foundation Bolt Layout Drawing
- General Arrangement Drawing
- Operation & Maintenance Manual
- Test Certificate
Applications
Jayco Double Girder EOT Cranes are widely used in:
Why Choose Jayco Double Girder EOT Crane?
Technical Advantages
- Heavy-duty fabricated box girder construction
- Optimized bridge design for minimum deflection
- Maximum hook approach
- Excellent lifting height
- Precision load positioning
- Smooth crab and crane travel
- Heavy-duty geared drive system
- Reliable braking system
- Low power consumption
- Long operating life
- Easy maintenance
- Suitable for continuous heavy-duty industrial operation
Frequently Asked Questions (FAQs)
A Double Girder EOT Crane is an overhead crane with two bridge girders supporting a motorized crab trolley and electric wire rope hoist. It is designed for lifting and transporting heavy loads safely and efficiently in industrial environments.
Jayco Double Girder EOT Cranes are available in capacities ranging from 1 Ton to 100 Ton. Higher capacities can be designed and manufactured upon request.
Our Double Girder EOT Cranes are available with spans up to 40 meters. Larger spans can be provided based on engineering feasibility.
Yes. We offer customized lifting capacities, spans, lifting heights, duty classifications, travel speeds, control systems, and electrical configurations to meet specific customer requirements.
They are widely used in steel plants, heavy engineering industries, cement plants, power plants, shipyards, foundries, automobile industries, railway workshops, warehouses, manufacturing facilities, and other heavy material handling applications.
The crane can be operated using a Pendant Push Button Station, Wireless Radio Remote Control, or Cabin Control, depending on the application.
Yes. Jayco provides installation, alignment, testing, commissioning, operator training, and complete technical support.
Yes. We supply genuine spare parts and provide prompt after-sales service to ensure reliable and uninterrupted crane operation.
Yes. Jayco Double Girder EOT Cranes can be supplied with weatherproof electrical equipment, protective paint systems, and special outdoor-duty configurations.
Jayco Double Girder EOT Cranes are equipped with fail-safe electromagnetic brakes, overload protection, upper and lower limit switches, emergency stop buttons, phase protection devices, thermal overload protection, rubber buffers, mechanical end stops, and optional anti-collision systems to ensure safe and reliable operation.

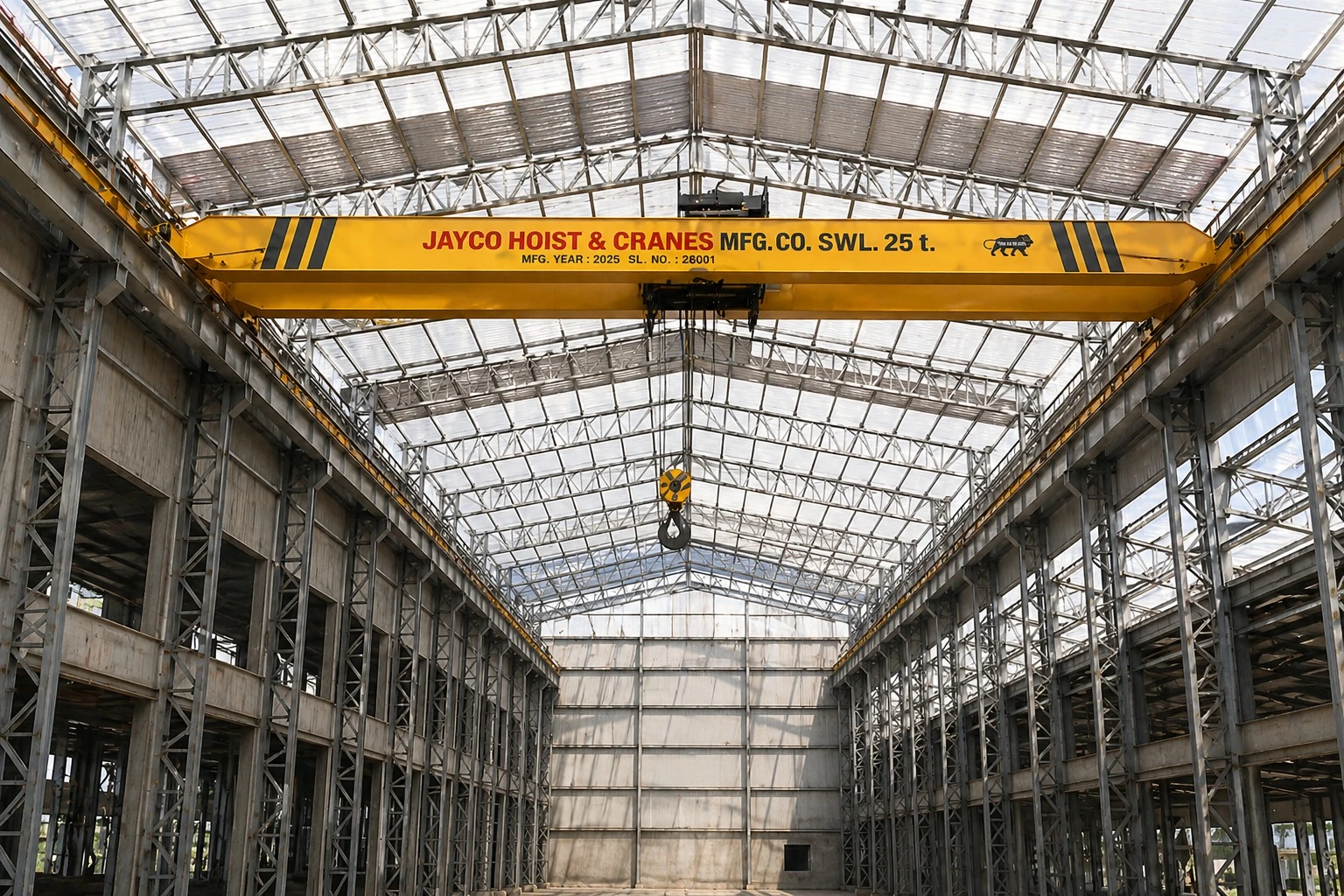

Gallery
