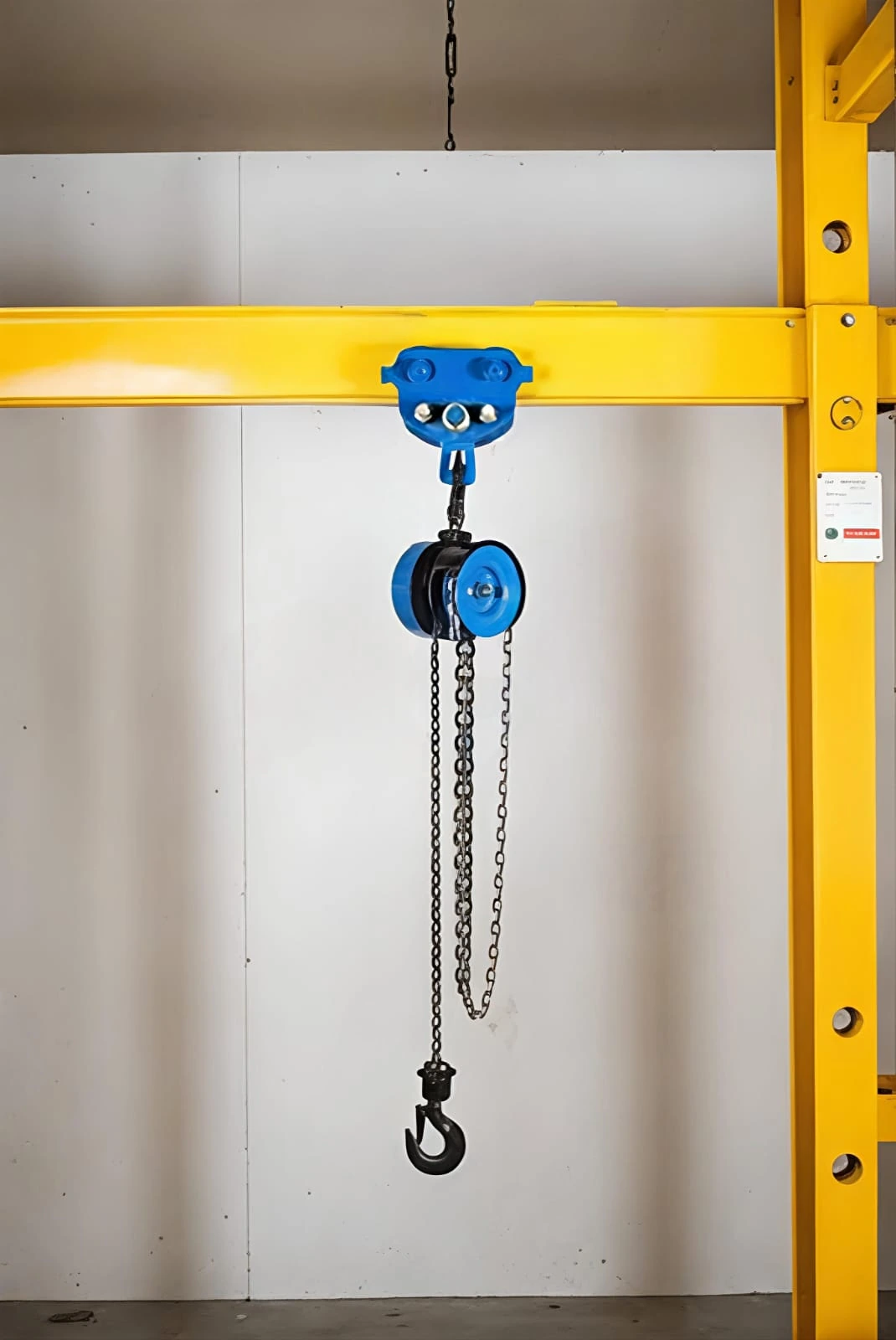

Push Pull Trolley Chain Block
Jayco Chain Pulley Block with Push Pull Trolley is a robust, economical, and manually operated lifting solution designed for safe lifting, lowering, and horizontal movement of loads along an overhead beam. This system combines a high-quality Chain Pulley Block with a Push Pull Trolley, enabling effortless load transportation by manually pushing or pulling the suspended load.
Manufactured using premium-quality materials and precision-engineered components, Jayco Chain Pulley Blocks with Push Pull Trolleys provide smooth operation, excellent load control, high mechanical efficiency, and long service life. The push pull trolley is ideal for applications where simple and cost-effective horizontal movement is required without the need for geared travel.
Available in Mild Steel (MS) and Stainless Steel 304 (SS304) construction, these units are suitable for general industrial applications as well as hygienic and corrosive environments including food processing, pharmaceutical, dairy, chemical, and marine industries.
Jayco Chain Pulley Blocks with Push Pull Trolleys are manufactured in accordance with IS 3832 and are available in a wide range of lifting capacities, beam sizes, and lifting heights. Customized configurations can also be supplied to suit specific customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Chain Pulley Block with Push Pull Trolley |
| Operation | Manual Hand Chain Operated |
| Trolley Type | Push Pull Trolley |
| Construction Material | Mild Steel (MS) / Stainless Steel 304 (SS304) |
| Safe Working Load (SWL) | 500 kg to 10,000 kg (0.5 Ton to 10 Ton) |
| Standard Lift | 3, 6, 9 & 12 Meters |
| Maximum Lift | Up to 30 Meters (Custom Available) |
| Travel Operation | Manual Push / Pull |
| Beam Compatibility | ISMB / ISWB / RSJ / Universal Beam |
| Beam Width | Adjustable as per Beam Size |
| Load Chain | Grade 80 / Grade 100 Alloy Steel, Heat Treated |
| Hand Chain | Zinc Plated Steel / Stainless Steel (Optional) |
| Hooks | Forged Alloy Steel with Safety Latch |
| Trolley Wheels | Precision Machined Steel Wheels |
| Wheel Bearings | Heavy-Duty Ball Bearings |
| Brake System | Automatic Mechanical Load Holding Brake |
| Safety Factor | As per IS Standards |
| Surface Finish | Powder Coated (MS) / Natural SS Finish (SS304) |
| Standard Colours | Orange, Yellow, Grey & Black (MS) / Natural Stainless Steel (SS304) |
| Application | Manual Lifting & Horizontal Material Handling |
Design & Manufacturing Standards
- IS 3832 – Chain Pulley Blocks
- IS 6216 – Alloy Steel Load Chains
- IS 807 – Structural Requirements (Applicable)
Available Material Options
Mild Steel (MS)
Recommended For
- Engineering Industries
- Fabrication Workshops
- Warehouses
- Automobile Industries
- Steel Plants
- Cement Plants
- Construction Sites
- Power Plants
- Machine Shops
Advantages
- Economical solution
- Heavy-duty construction
- High mechanical strength
- Powder-coated corrosion-resistant finish
- Easy maintenance
- Long service life
Stainless Steel 304 (SS304)
Recommended For
- Pharmaceutical Industries
- Food Processing Plants
- Dairy Industries
- Beverage Industries
- Chemical Plants
- Marine Industries
- Offshore Applications
- Clean Rooms
- Hygienic Manufacturing Areas
Advantages
- Excellent corrosion resistance
- Rust-proof construction
- Hygienic design
- Wash-down suitable
- Long service life
- Attractive stainless steel finish
Standard Features
Chain Pulley Block Features
- Heavy-duty steel body construction
- Compact and lightweight design
- Precision-machined load sheave
- Grade 80 / Grade 100 alloy steel load chain
- Heat-treated gear train
- Automatic load-holding brake
- Forged upper and lower hooks
- Smooth lifting and lowering operation
- Long service life
Push Pull Trolley Features
- Heavy-duty fabricated steel side plates
- Manual push/pull operation
- Adjustable beam width
- Precision-machined steel wheels
- Heavy-duty ball bearings
- Anti-drop side plates
- Smooth rolling movement
- Low rolling resistance
- Robust wheel assembly
- Easy installation on standard beams
Mechanical Features
- Compact integrated design
- High mechanical efficiency
- Smooth lifting and horizontal movement
- Adjustable trolley assembly
- Heavy-duty wheel construction
- Precision chain guidance
- Rugged construction
- Suitable for continuous industrial duty
Safety Features
- Automatic mechanical load-holding brake
- Double pawl braking mechanism
- Forged alloy steel hooks
- Heavy-duty safety latches
- Anti-drop trolley side plates
- Heavy-duty wheel flanges
- Precision chain guide
- Factory load tested
- High safety factor
- Safe and reliable operation
Optional Features
- Stainless Steel Hand Chain
- Stainless Steel Hooks
- SS316 Construction
- Spark Resistant Construction
- Corrosion Resistant Finish
- Marine Duty Design
- Food Grade Finish
- Extended Lift Heights
- Low Headroom Push Pull Trolley
- Customized Beam Width
- Anti-Corrosion Coating
- Name Plate Branding
- Customized Paint Shade
Standard Scope of Supply
- Chain Pulley Block
- Push Pull Trolley
- Upper Suspension Assembly
- Heat-Treated Alloy Steel Load Chain
- Hand Chain
- Forged Hooks with Safety Latches
- Mechanical Brake Assembly
- Operating Instructions
- Routine Test Certificate
- Warranty Certificate
Applications
Jayco Chain Pulley Blocks with Push Pull Trolleys are widely used in:
Why Choose Jayco Chain Pulley Block with Push Pull Trolley?
Technical Advantages
- Simple push/pull horizontal travel
- No hand chain required for trolley movement
- Adjustable trolley for various beam sizes
- Smooth and accurate load movement
- Low rolling resistance
- Heavy-duty alloy steel load chain
- Precision-machined trolley wheels
- Corrosion-resistant finish
- Easy installation and maintenance
- Long operating life
- Suitable for continuous industrial operation
Frequently Asked Questions (FAQs)
A Chain Pulley Block with Push Pull Trolley is a manually operated lifting system that combines a chain pulley block with a trolley that moves horizontally by manually pushing or pulling the suspended load along an overhead beam.
A Push Pull Trolley is moved by manually pushing or pulling the load, making it simple and economical. A Geared Trolley uses a hand chain and gear mechanism for controlled horizontal travel, making it more suitable for heavier loads and precise positioning.
Jayco models are available in Mild Steel (MS) and Stainless Steel 304 (SS304). SS316 construction is also available for highly corrosive environments on request.
Standard capacities range from 0.5 Ton to 10 Ton. Higher capacities can be manufactured based on customer requirements.
Yes. The Push Pull Trolley features an adjustable beam width suitable for ISMB, ISWB, RSJ, Universal Beams, and other standard beam sections.
They are widely used in manufacturing plants, engineering workshops, warehouses, fabrication shops, construction sites, power plants, food processing industries, pharmaceutical plants, shipyards, and maintenance departments.
The system includes an automatic mechanical load-holding brake, double pawl braking mechanism, forged hooks with safety latches, anti-drop trolley side plates, heavy-duty wheel flanges, precision chain guides, and factory load testing for safe and reliable operation.
Yes. We provide customized lifting capacities, lifting heights, beam widths, stainless steel construction, low headroom designs, marine-duty versions, and special finishes to meet specific application requirements.
Yes. Jayco supplies genuine spare parts, maintenance support, inspection services, and prompt after-sales assistance to ensure long-term reliable performance.
Jayco Chain Pulley Blocks with Push Pull Trolleys combine heavy-duty construction, premium-quality materials, smooth lifting and manual travel, high safety standards, low maintenance, long service life, and dependable after-sales support, making them an ideal and cost-effective solution for manual material handling.
