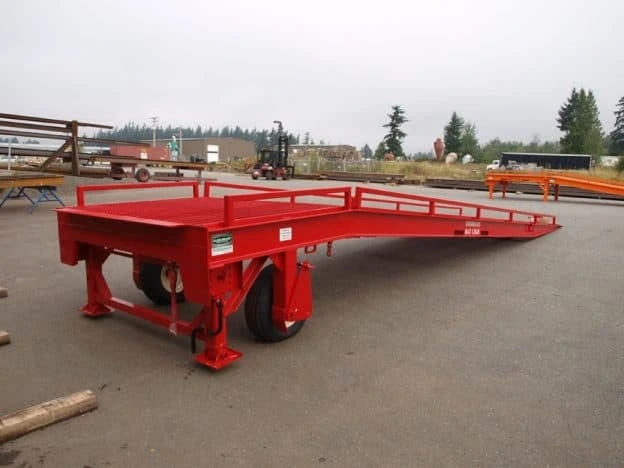

Mobile Dock Ramp

Jayco Mobile Dock Ramp is a heavy-duty, portable loading solution designed to provide safe, fast, and efficient loading and unloading of goods between ground level and transport vehicles or shipping containers. Manufactured using premium-quality Mild Steel (MS) and advanced engineering technology, our Mobile Dock Ramps offer superior strength, excellent stability, smooth operation, and long service life.

The ramp is equipped with heavy-duty wheels for easy mobility and an adjustable hydraulic lifting mechanism that allows the platform height to match different truck bed heights. It enables forklifts, pallet trucks, and other material handling equipment to move directly into trucks or containers, significantly improving productivity while reducing manual handling.

Jayco Mobile Dock Ramps are ideal for warehouses, logistics centers, manufacturing industries, distribution centers, ports, and export facilities. Available in various capacities and platform sizes, they can also be customized to meet specific customer requirements.

Product Specifications

Parameter	Specification
Product Type	Mobile Dock Ramp
Operation	Manual Hydraulic / Electric Hydraulic
Construction Material	Heavy-Duty Mild Steel (MS)
Safe Working Load (SWL)	5 Ton to 15 Ton
Platform Width	1800 mm to 2200 mm
Overall Width	2100 mm to 2400 mm
Platform Length	9 Meters to 12 Meters
Adjustable Height Range	900 mm to 1700 mm
Ramp Inclination	Adjustable
Deck Plate	Anti-Skid MS Chequered Plate
Lifting Mechanism	Hydraulic Cylinder
Hydraulic Operation	Manual Hand Pump / Electric Hydraulic Power Pack
Support Legs	Adjustable Heavy-Duty Support Legs
Mobility	Pneumatic Tyres / Solid Rubber Wheels
Forklift Entry	Full Width
Surface Finish	Epoxy Primer with Industrial PU Paint
Standard Colours	Orange, Light Grey, Yellow & Black (Custom Colours Available)
Application	Loading & Unloading of Trucks and Containers

Design & Manufacturing Standards

IS 2062 – Structural Steel
IS 3177 – Applicable Design Practices

Standard Features

Structural Features

Heavy-duty fabricated Mild Steel construction
Anti-skid chequered plate platform
Reinforced loading deck
High-strength structural frame
Heavy-duty loading lip
Wide loading platform
Rugged industrial construction
Long service life

Hydraulic Features

Heavy-duty hydraulic cylinder
Manual hand pump or electric hydraulic power pack
Smooth lifting and lowering operation
Adjustable platform height
Leak-proof hydraulic system
Maintenance-friendly design

Mobility Features

Heavy-duty pneumatic tyres
Towing arrangement for easy transportation
Adjustable support legs
Forklift entry provision
Easy movement between loading bays
Stable loading platform

Safety Features

Anti-skid chequered plate surface
Safety side curbs
Heavy-duty wheel chocks
Adjustable support legs with locking arrangement
Hydraulic safety valve
Safety chains for truck locking
Factory load tested
High safety factor

Optional Features

Electric Hydraulic Power Pack
Manual Hydraulic Hand Pump
Solid Rubber Wheels
Pneumatic Tyres
Hydraulic Stabilizers
Dock Bumpers
Safety Handrails
Galvanized Finish
Weatherproof Hydraulic Unit
Anti-Corrosion Paint System
Stainless Steel Fasteners
Customized Platform Size
Customized Capacity
Special Paint Shade

Standard Scope of Supply

Mobile Dock Ramp
Hydraulic Cylinder
Manual Hydraulic Pump / Electric Hydraulic Power Pack
Adjustable Support Legs
Heavy-Duty Tyres
Safety Chains
Wheel Chocks
Loading Lip
Fasteners & Hardware
Operation & Maintenance Manual
Routine Test Certificate
Warranty Certificate

Applications

Jayco Mobile Dock Ramps are widely used in:

Warehouses Logistics & Distribution Centers Manufacturing Industries Export & Import Warehouses Shipping & Freight Companies Ports & Harbours Automobile Industries FMCG Industries Food Processing Plants Pharmaceutical Industries Cold Storage Facilities Packaging Industries Textile Industries Chemical Industries Container Loading Areas Material Handling Operations

Why Choose Jayco Mobile Dock Ramp?

Over 40 Years of Manufacturing Experience Heavy-Duty Mild Steel Construction Portable & Easy to Relocate Premium-Quality Components Smooth Hydraulic Operation High Load Carrying Capacity High Operational Safety Low Maintenance Cost Rugged Industrial Design Competitive Pricing Timely Delivery Complete Installation & Commissioning Support Reliable After-Sales Service Genuine Spare Parts Availability Customized Solutions for Every Application

Technical Advantages

Portable design for multiple loading locations
Adjustable height to suit different truck bed levels
Enables direct forklift access into trucks and containers
Heavy-duty anti-skid loading platform
Smooth hydraulic height adjustment
Robust fabricated construction
Easy transportation and positioning
Low maintenance
Long service life
Suitable for continuous industrial operation

Frequently Asked Questions (FAQs)

A Mobile Dock Ramp is a portable loading platform that bridges the height difference between ground level and truck or container floors, allowing forklifts and pallet trucks to safely load and unload goods.

Jayco Mobile Dock Ramps are available in capacities ranging from 5 Ton to 15 Ton. Higher capacities can be manufactured on request.

The ramp height can be adjusted using a manual hydraulic hand pump or an electric hydraulic power pack, depending on the selected model.

Yes. We offer customized capacities, platform dimensions, height ranges, wheel types, hydraulic systems, and paint finishes to meet specific customer requirements.

They are widely used in warehouses, logistics centers, manufacturing plants, ports, shipping companies, cold storage facilities, export houses, distribution centers, and material handling operations.

Yes. Jayco Mobile Dock Ramps are specifically designed to allow forklifts, pallet trucks, and other material handling equipment to safely travel between ground level and truck or container floors.

The ramp is supplied in a ready-to-use condition with an Operation & Maintenance Manual. Technical assistance and operator guidance are available whenever required.

Yes. We provide genuine spare parts, preventive maintenance, inspections, and prompt after-sales service to ensure reliable and uninterrupted operation.

Yes. The ramp is fitted with heavy-duty wheels and a towing arrangement, allowing it to be easily relocated and used at multiple loading bays.

Jayco Mobile Dock Ramps are equipped with anti-skid chequered plate decking, safety side curbs, hydraulic safety valves, adjustable support legs with locking arrangement, safety chains, wheel chocks, and factory-tested construction to ensure safe and efficient loading and unloading operations.
