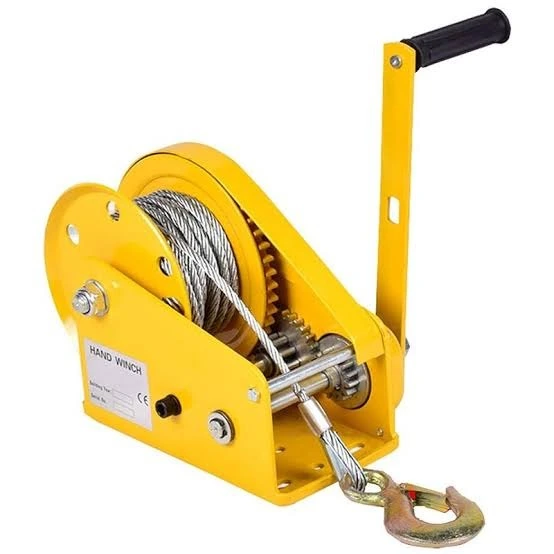

Manual Hand Winch
Jayco Manual Hand Winch is a compact, durable, and cost-effective lifting and pulling solution designed for applications where electrical power is unavailable or not required. Manufactured using premium-quality materials and precision engineering, our Manual Hand Winches provide smooth manual operation, reliable load control, high mechanical efficiency, and long service life.
Operated through a hand crank mechanism, the winch is ideal for lifting, pulling, tensioning, and positioning loads safely and efficiently. Its robust construction and simple operation make it suitable for industrial, construction, marine, agricultural, and general material handling applications.
Jayco Manual Hand Winches are available in various capacities, rope lengths, and gear ratios and can be customized to meet specific requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Manual Hand Winch |
| Operation | Manual Hand Crank |
| Safe Working Load (SWL) | 250 kg to 5000 kg (0.25 Ton to 5 Ton) |
| Wire Rope Capacity | As per Application |
| Wire Rope Length | Up to 100 Meters |
| Operation Method | Hand Crank with Gear Mechanism |
| Gear Type | Spur Gear / Worm Gear (As Required) |
| Brake System | Self-Locking Automatic Brake / Ratchet Brake |
| Winch Drum | Precision Machined Steel Drum |
| Frame Construction | Heavy-Duty Fabricated Steel |
| Wire Rope | High-Strength Galvanized Steel Wire Rope |
| Hook | Forged Steel Hook with Safety Latch (Optional) |
| Finish | Industrial Painted / Powder Coated |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Lifting, Pulling & Positioning Loads |
Design & Manufacturing Standards
- IS Standards
- FEM Standards (where applicable)
Standard Features
Mechanical Features
- Heavy-duty fabricated steel construction
- Precision-machined steel drum
- High-strength steel gear mechanism
- Smooth hand crank operation
- Heavy-duty drum shaft
- Galvanized steel wire rope
- Compact and lightweight design
- Corrosion-resistant finish
- Long service life
Operational Features
- Easy manual operation
- Smooth load lifting and pulling
- High mechanical efficiency
- Suitable for indoor and outdoor use
- No electrical power required
- Low maintenance
Safety Features
- Self-locking automatic brake mechanism
- Ratchet and pawl safety system
- High-strength wire rope
- Heavy-duty gear transmission
- Forged hook with safety latch (Optional)
- Stable load holding during operation
Optional Features
- Stainless Steel Wire Rope
- Stainless Steel Construction (SS304 / SS316)
- Worm Gear Drive
- Hand Brake System
- Free Spooling Drum
- Grooved Drum
- Hook with Swivel
- Weatherproof Finish
- Marine Duty Paint System
- Wall Mounting Bracket
- Customized Rope Length
- Customized Gear Ratio
- Customized Paint Shade
Standard Scope of Supply
- Manual Hand Winch Assembly
- Steel Wire Rope
- Winch Drum
- Hand Crank Handle
- Gear Mechanism
- Brake Mechanism
- Mounting Hardware
- Operation & Maintenance Manual
- General Arrangement Drawing
- Routine Test Certificate
Applications
Jayco Manual Hand Winches are widely used in:
Why Choose Jayco Manual Hand Winch?
Technical Advantages
- Self-locking brake mechanism for safe load holding
- Heavy-duty gear transmission for smooth operation
- Compact and lightweight design
- High-strength steel drum
- Corrosion-resistant construction
- Low operating effort
- Long operating life
- Easy installation
- Minimal maintenance
- Reliable performance in demanding environments
Frequently Asked Questions (FAQs)
A Manual Hand Winch is a hand-operated lifting and pulling device that uses a crank handle and gear mechanism to wind a steel wire rope around a drum for moving or positioning loads safely.
Jayco Manual Hand Winches are available in capacities ranging from 250 kg (0.25 Ton) to 5 Ton. Higher capacities can be supplied upon request.
Yes. We offer customized load capacities, wire rope lengths, drum sizes, gear ratios, mounting arrangements, and finishes to suit specific application requirements.
Our Manual Hand Winches are widely used in construction, engineering, manufacturing, marine, agriculture, warehouses, utility maintenance, trailer recovery, and general material handling applications.
No. Jayco Manual Hand Winches are completely manually operated and require no electrical power, making them ideal for remote locations and emergency applications.
- Robust and compact design
- Easy manual operation
- Reliable self-locking brake
- Low maintenance
- Long service life
- High mechanical efficiency
- Cost-effective solution
- Excellent after-sales support
Yes. Jayco provides installation guidance, operating instructions, and technical support to ensure safe and efficient use of the winch.
Yes. We supply genuine spare parts, including wire ropes, gears, drums, brake components, crank handles, hooks, and bearings, ensuring long-term reliability and serviceability.
Yes. Jayco Manual Hand Winches are suitable for lifting, pulling, tensioning, positioning, and hauling applications, provided they are used within their rated capacity and intended operating conditions.
Jayco Manual Hand Winches are equipped with a self-locking automatic brake, ratchet and pawl mechanism, heavy-duty steel gears, high-strength wire rope, and robust fabricated construction to ensure safe, reliable, and controlled load handling.
