Jib Crane - Wall Mounted

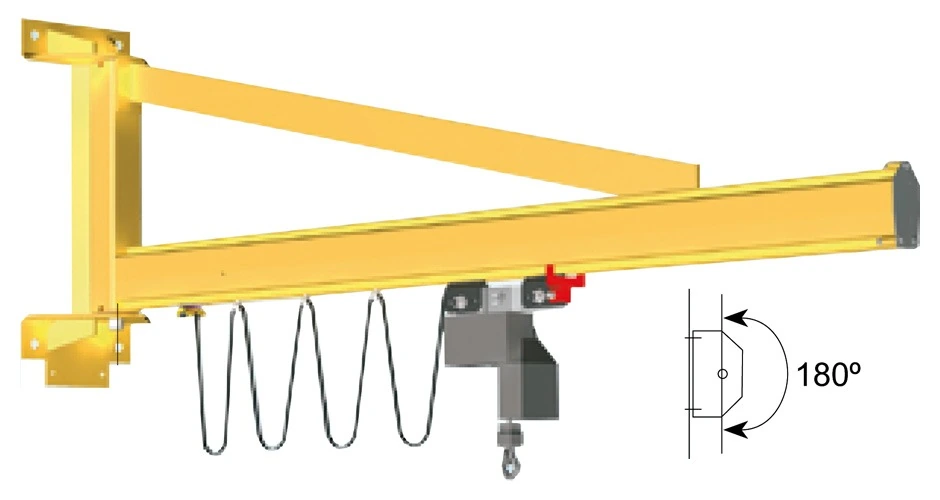

Jayco JIB Crane - Wall Mountedis a compact, space-saving, and efficient material handling solution designed for lifting and transferring loads within a defined working area. Mounted directly on an existing building wall or structural steel column, it eliminates the need for floor space and independent support structures, making it ideal for workshops, production lines, warehouses, assembly stations, and maintenance areas.
Manufactured using premium-quality Mild Steel (MS) and advanced engineering technology, Jayco JIB Crane - Wall Mounted offer smooth slewing, precise load positioning, reliable performance, high operational safety, and long service life.
Jayco JIB Crane - Wall Mountedcan be equipped with Electric Wire Rope Hoists, Electric Chain Hoists, or Manual Chain Pulley Blocks and are available in various lifting capacities, arm lengths, and lifting heights. They can also be customized to meet specific customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Wall Mounted Jib Crane |
| Operation | Manual / Electric Operated |
| Hoist Type | Electric Wire Rope Hoist / Electric Chain Hoist / Manual Chain Pulley Block |
| Construction Material | Heavy-Duty Mild Steel (MS) |
| Safe Working Load (SWL) | 250 kg to 5,000 kg (0.25 Ton to 5 Ton) |
| Jib Arm Length | Up to 8 Meters |
| Height Under Boom | As per Site Requirement |
| Lifting Height | As per Hoist Selection |
| Slewing Rotation | Up to 180° |
| Slewing Operation | Manual / Motorized (Optional) |
| Hoisting Speed | As per Hoist Selection |
| Cross Travel | Manual / Geared / Motorized |
| Duty Classification | IS 3177 / FEM Standards |
| Mounting Type | RCC Wall / Structural Steel Column |
| Power Supply | 415V, 3 Phase, 50 Hz AC (Electric Models) |
| Control System | Pendant Push Button Station / Optional Wireless Radio Remote Control |
| Surface Finish | Epoxy Primer with Industrial PU Paint |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Workstation & Industrial Material Handling |
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture & Erection of Cranes
Standard Features
Structural Features
- Heavy-duty fabricated jib arm
- Robust wall mounting brackets
- Precision-engineered pivot assembly
- High-strength boom construction
- Compact and space-saving design
- Smooth slewing operation
- Rigid structural construction
- Suitable for continuous industrial duty
Mechanical Features
- Heavy-duty trolley arrangement
- Compatible with Electric Wire Rope Hoists
- Compatible with Electric Chain Hoists
- Compatible with Manual Chain Pulley Blocks
- Smooth trolley travel
- Accurate load positioning
- Heavy-duty fabricated construction
- Long service life
Electrical Features (Electric Models)
- Energy-efficient motors
- Electromagnetic fail-safe brake
- Class F insulated motors
- IP55 protected electrical components
- Reliable electrical control panel
- Pendant Push Button Station
- Optional Wireless Radio Remote Control
Safety Features
- Heavy-duty wall mounting arrangement
- Mechanical rotation stopper
- Overload Protection (Optional)
- Upper & Lower Limit Switches
- Emergency Stop Button
- High-strength forged hook with safety latch
- Factory load tested
- High safety factor
Optional Features
- Electric Wire Rope Hoist
- Electric Chain Hoist
- Manual Chain Pulley Block
- Motorized Trolley
- Geared Trolley
- Push Pull Trolley
- Motorized Slewing
- Variable Frequency Drive (VFD)
- Dual Hoisting Speed
- Wireless Radio Remote Control
- Load Limiter
- Digital Load Display
- Weatherproof Design
- Flameproof / Explosion Proof Hoist
- Stainless Steel Fasteners
- Special Paint Shade
- Customized Boom Length
- Customized Lifting Height
Standard Scope of Supply
- Wall Mounted Jib Arm Assembly
- Heavy-Duty Wall Mounting Brackets
- Pivot Assembly
- Trolley (As Selected)
- Hoist (If Ordered)
- Electrical Control Panel (Electric Models)
- Pendant Push Button Station
- Fasteners & Hardware
- Installation / Mounting Drawing
- Operation & Maintenance Manual
- Routine Test Certificate
- Warranty Certificate
Applications
Jayco JIB Crane - Wall Mounted are widely used in:
Why Choose Jayco JIB Crane - Wall Mounted?
Technical Advantages
- No floor space required
- Mounts directly on existing walls or steel columns
- Smooth slewing operation up to 180°
- Compact workstation lifting solution
- Excellent load positioning accuracy
- Heavy-duty fabricated boom
- Low maintenance
- Easy installation
- Long service life
- Suitable for continuous industrial operation
Frequently Asked Questions (FAQs)
A JIB Crane - Wall Mounted is a lifting system mounted directly on an existing RCC wall or structural steel column, providing efficient lifting and load handling within a limited working area without occupying valuable floor space.
Jayco JIB Crane - Wall Mountedare available in capacities ranging from 250 kg (0.25 Ton) to 5 Ton. Higher capacities can be designed on request, subject to structural feasibility.
The crane can be equipped with an Electric Wire Rope Hoist, Electric Chain Hoist, or Manual Chain Pulley Block, depending on the application.
Yes. We offer customized lifting capacities, jib arm lengths, lifting heights, slewing arrangements, trolley types, and control systems to meet specific customer requirements.
They are widely used in manufacturing plants, engineering workshops, warehouses, fabrication units, assembly lines, machine shops, maintenance departments, automobile industries, and general material handling applications.
Jayco JIB Crane - Wall Mounted typically provide up to 180° rotation, depending on the installation location and surrounding structure.
Yes. Jayco provides installation, testing, commissioning, operator training, and complete technical support whenever required.
Yes. We supply genuine spare parts and provide prompt after-sales service, preventive maintenance, inspections, and technical support.
The crane can be mounted on RCC walls or structural steel columns, provided the supporting structure has adequate strength to safely withstand the crane loads. A structural assessment is recommended before installation.
- Jayco JIB Crane - Wall Mounted can be equipped with fail-safe braking systems, overload protection, upper and lower limit switches, emergency stop buttons, forged hooks with safety latches, mechanical rotation stoppers, and factory-tested components to ensure safe, reliable, and efficient lifting operations.
