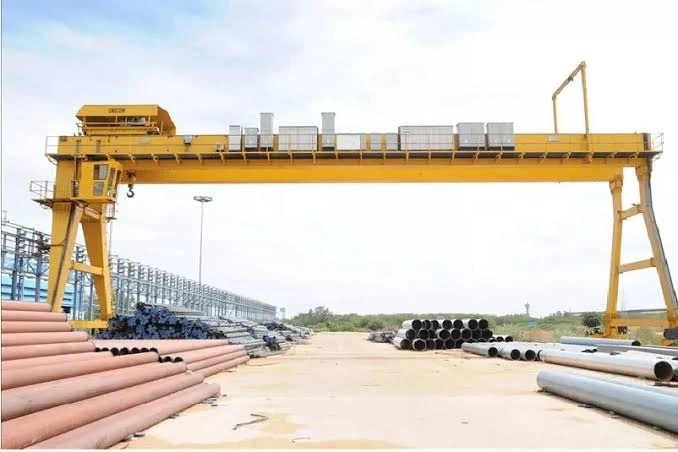

Goliath Gantry Crane
Jayco Goliath Gantry Crane is a robust, high-performance, and reliable material handling solution designed for lifting, transporting, and positioning heavy loads in indoor and outdoor industrial applications. Manufactured using premium-quality structural steel and advanced engineering technology, our Goliath Gantry Cranes offer superior strength, smooth operation, precise load control, high operational safety, and long service life.
Unlike conventional EOT Cranes, Goliath Gantry Cranes travel on floor-mounted rails supported by heavy-duty gantry legs, eliminating the need for overhead runway beams and building support structures. This makes them an ideal solution for fabrication yards, steel plants, shipyards, warehouses, railway workshops, ports, power plants, precast yards, infrastructure projects, and heavy engineering industries.
Jayco Goliath Gantry Cranes are available in Single Girder and Double Girder configurations and can be equipped with Electric Wire Rope Hoists or Crab Trolley arrangements depending on the lifting capacity and application. They are designed for continuous industrial duty and can be fully customized to suit specific customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Goliath Gantry Crane |
| Crane Type | Single Girder / Double Girder |
| Operation | Electric Operated |
| Hoist Type | Electric Wire Rope Hoist / Crab Trolley |
| Safe Working Load (SWL) | 500 kg to 200,000 kg (0.5 Ton to 200 Ton) |
| Span | Up to 40 Meters |
| Height of Lift | Up to 30 Meters |
| Hoisting Speed | As per Application |
| Cross Travel Speed (CT) | 5–10 Meters/Minute |
| Long Travel Speed (LT) | 5–10 Meters/Minute |
| Creep Speed | Optional |
| Duty Classification | IS 3177 / IS 807 / FEM Standards |
| Bridge Construction | Fabricated Box Girder |
| Leg Construction | Rigid Leg / Flexible Leg Design |
| Hoisting Motor | Squirrel Cage Induction Motor with Electromagnetic Brake |
| Travel Motors | Squirrel Cage Induction Geared Motors |
| Motor Insulation | Class F |
| Protection Class | IP55 (Optional IP65) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Power Supply Arrangement | Cable Reeling Drum / Festoon System |
| Rail Type | Floor Mounted Crane Rail for Long Travel |
| Control System | Pendant Push Button Station / Radio Remote Control / Cabin Control (Optional) |
| Construction Material | Heavy-Duty Mild Steel (MS) |
| Surface Finish | Epoxy Primer with Industrial PU Paint |
| Standard Colours | Orange, Light Grey, Yellow & Black (Custom Colours Available) |
| Application | Indoor & Outdoor Heavy Material Handling |
Standard Features
Mechanical Features
- Heavy-duty fabricated box girder construction
- Precision-machined end carriages
- Heavy-duty gantry legs
- Electric Wire Rope Hoist or Crab Trolley
- Heavy-duty crane wheels
- High-strength hook block with safety latch
- Smooth and precise load handling
- Robust geared travel mechanism
- Compact and rigid construction
Electrical Features
- Energy-efficient motors
- Electromagnetic fail-safe brakes
- Class F insulated motors
- IP55 protected electrical components
- Cable Reeling Drum / Festoon Cable System
- Reliable electrical control panel
- Pendant Push Button Station
- Optional Radio Remote Control
- Optional Cabin Control
Safety Features
- Overload Protection (Optional)
- Upper & Lower Limit Switches
- Emergency Stop Button
- Cross Travel Limit Switches
- Long Travel Limit Switches
- Rubber Buffers
- Mechanical End Stops
- Rail Sweep Guards
- Storm Lock Device (Optional)
- Rail Clamps (Optional)
- Phase Failure & Phase Reversal Protection
- Anti-Collision System (Optional)
Optional Features
- Variable Frequency Drive (VFD)
- Dual Hoisting Speed
- Dual Travel Speed
- Wireless Radio Remote Control
- Operator Cabin
- Load Limiter
- Digital Load Display
- Flameproof / Explosion Proof Hoist
- Weatherproof Outdoor Design
- Walkway with Handrails
- Maintenance Platform
- Crane Lighting System
- Siren & Warning Light
- Storm Brakes
- Rail Clamps
- Wind Speed Indicator
- Cable Reeling Drum
- Customized Span
- Customized Lift Height
- Customized Paint Shade
Standard Scope of Supply
- Bridge Girder
- Gantry Legs
- End Carriages
- Electric Wire Rope Hoist / Crab Trolley
- Motorized Cross Travel Trolley
- Long Travel Drive Units
- Hoisting & Travel Motors
- Hook Block
- Wire Rope
- Electrical Control Panel
- Pendant Push Button Station
- Power Supply System
- Cable Reeling Drum / Festoon System
- Buffers & End Stops
- Foundation Layout Drawing
- Operation & Maintenance Manual
- Routine Test Certificate
Applications
Jayco Heavy Duty Electric Goliath Gantry Cranes are widely used in:
Why Choose Jayco Heavy Duty Electric Goliath Gantry Crane?
Technical Advantages
- Floor-mounted rail operation eliminates the need for overhead runway beams
- Heavy-duty box girder design for minimum deflection
- Smooth cross travel and long travel operation
- High lifting efficiency
- Energy-efficient drive systems
- Reliable braking performance
- Weather-resistant construction
- Heavy-duty geared drive mechanism
- Low maintenance
- Suitable for continuous industrial operation
- Excellent stability for outdoor applications
Frequently Asked Questions (FAQs)
A Heavy Duty Electric Goliath Gantry Crane is a rail-mounted crane supported by gantry legs that travels on floor-mounted rails. It is designed for lifting and transporting heavy materials without requiring overhead runway beams.
Jayco Goliath Gantry Cranes are available from 500 kg (0.5 Ton) to 200 Ton. Higher capacities can also be manufactured based on customer requirements.
We manufacture Single Girder, Double Girder, and customized Goliath Gantry Cranes suitable for various industrial applications.
Yes. We offer customized lifting capacities, spans, lifting heights, duty classifications, travel speeds, control systems, and rail arrangements to meet specific application requirements.
They are widely used in shipyards, ports, steel plants, power plants, cement plants, fabrication yards, railway workshops, warehouses, heavy engineering industries, and infrastructure projects.
The crane can be operated using a Pendant Push Button Station, Wireless Radio Remote Control, or Operator Cabin, depending on the application.
Yes. Jayco provides installation, alignment, testing, commissioning, operator training, and complete technical support.
Yes. We supply genuine spare parts and provide prompt after-sales service, preventive maintenance, inspections, and technical support.
Yes. Jayco Goliath Gantry Cranes are specially designed for indoor and outdoor applications and can be supplied with weatherproof electrical equipment, industrial protective paint systems, storm locks, and rail clamps.
Jayco Goliath Gantry Cranes can be equipped with fail-safe electromagnetic brakes, overload protection, upper and lower limit switches, emergency stop buttons, travel limit switches, rubber buffers, rail sweep guards, storm locks, rail clamps, anti-collision systems (optional), and phase protection devices to ensure safe and reliable crane operation.
